Product Model

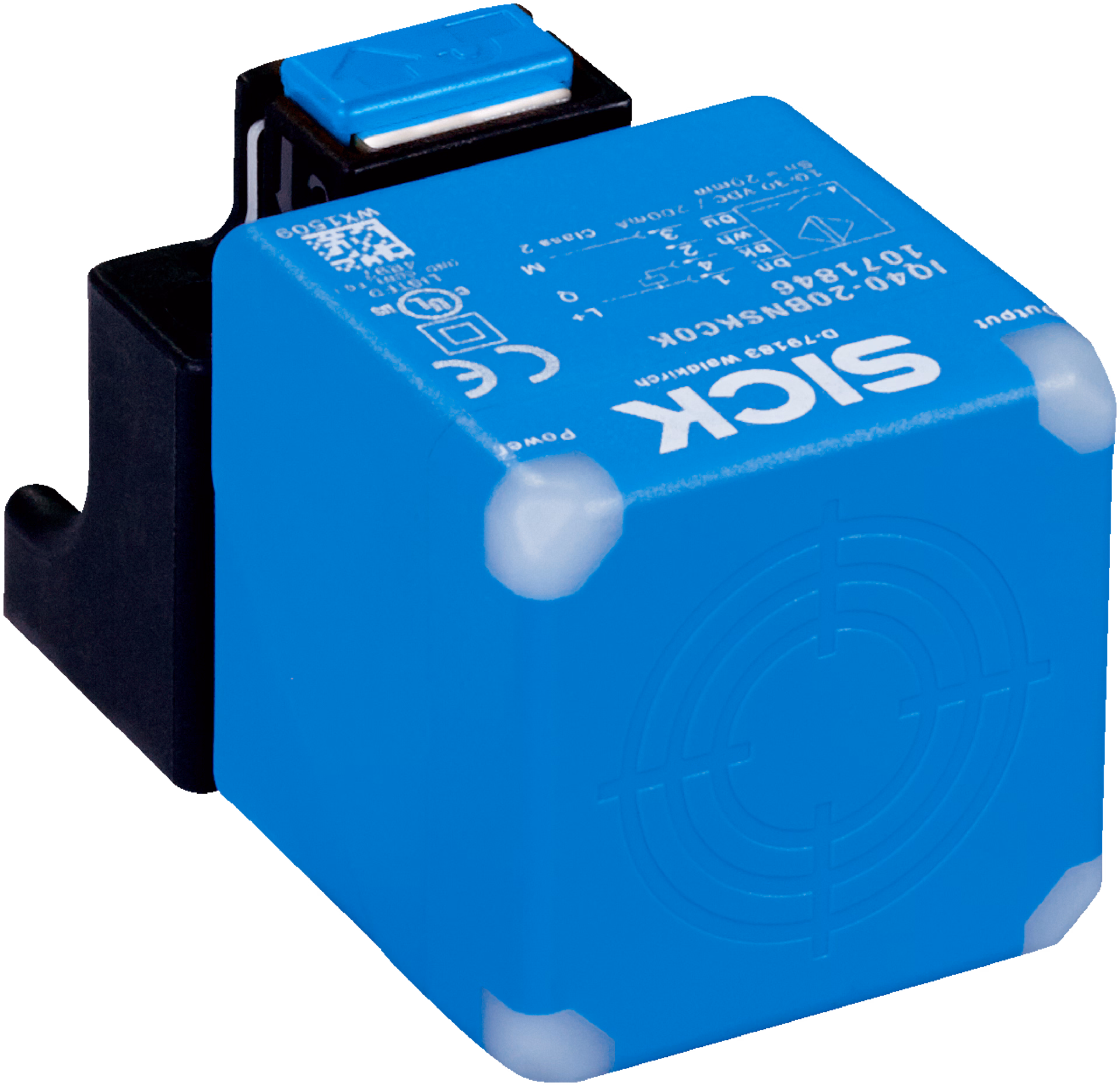

IQ40-40NPPKC0KS06
Key Features
- 1High-precision measurement with ±0.1 mm accuracy.
- 2Robust stainless steel housing for durability in harsh environments.
- 3Easy installation with plug-and-play connectivity options.
- 4Reliable operation in temperatures from -20°C to 70°C.
- 5Compatible with various process fluids and gases.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing | Rectangular | Housing | Short-body |
| Dimensions (W x H x D) | 40 mm x 40 mm x 66 mm | Sensing range Sn | 40 mm |
| Safe sensing range Sa | 32.4 mm | Installation type | Non-flush |
| Switching frequency | 4.5 Hz | Connection type | Male connector M12, 4-pin |
| Switching output | PNP | Output function | Complementary |
| Electrical wiring | DC 4-wire | Enclosure rating | IP67, IP68, IP69K |
| Special applications | Difficult application conditions | Items supplied | Push-lock mounting system (1x) |
| Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 10 V |
| Voltage drop | ≤ 2 V | Time delay before availability | ≤ 200 ms |
| Hysteresis | 3 % ... 15 % | Reproducibility | ≤ 6 % |
| Temperature drift (of Sr) | ± 10 % | Continuous current Ia | ≤ 200 mA |
| No load current | 12.5 mA | Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ | Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +85 °C | Ambient temperature, storage | –40 °C ... +85 °C |
| Housing material | Plastic, PA 66 | Sensing face material | Plastic, PA 66 |
| Tightening torque, max. | 1.8 Nm | Protection class | II |
| UL File No. | E348498 | Note | The values are reference values which may vary |
| Stainless steel (V2A, 304) | Approx. 0.8 | Aluminum (Al) | Approx. 0.34 |
| Copper (Cu) | Approx. 0.27 | Brass (Br) | Approx. 0.38 |
| Remark | Associated graphic see "Installation" | A | 42 mm |
| B | 150 mm | C | 40 mm |
| D | 120 mm | E | 40 mm |
| F | 150 mm |
Specifications may be subject to change without notice
