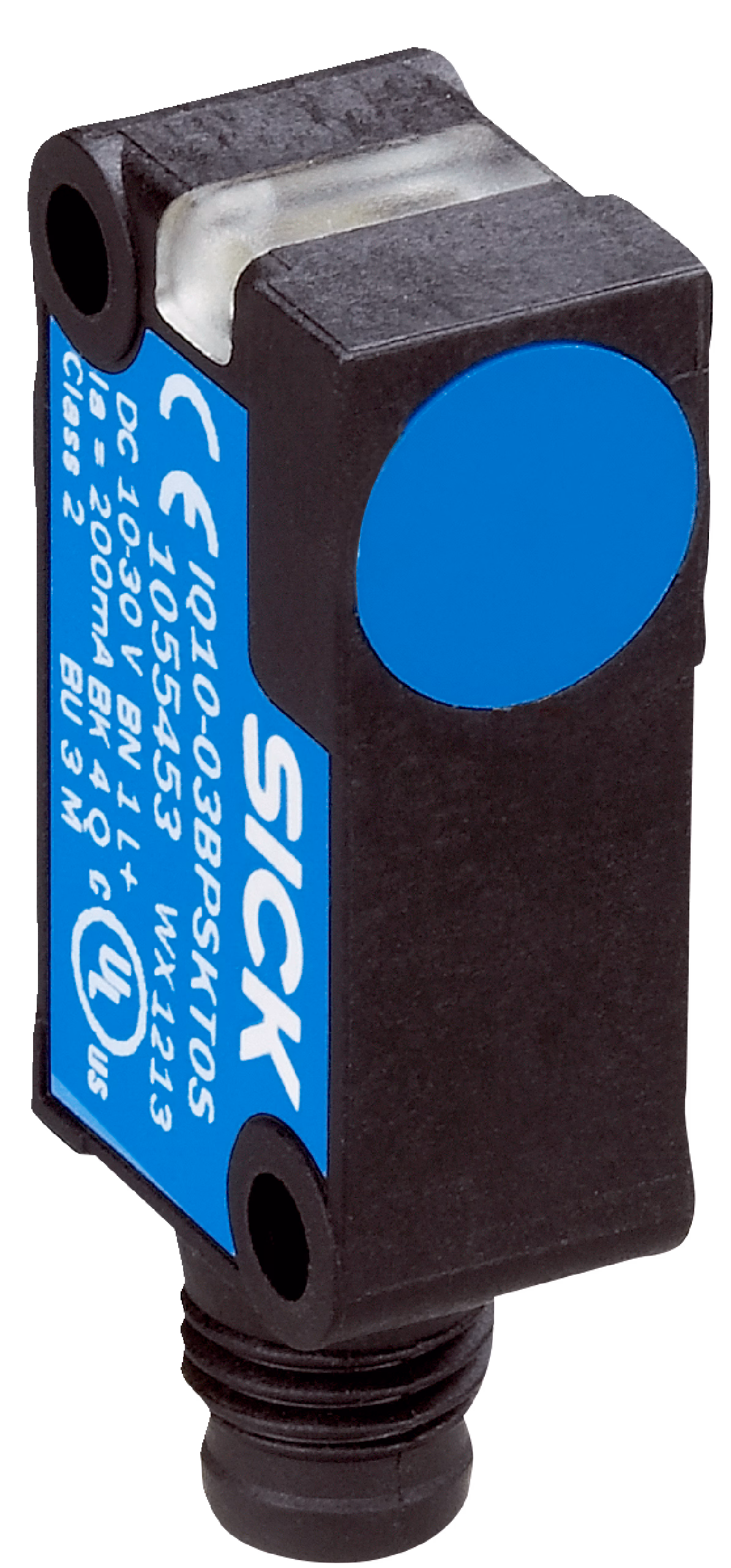

Product Model
IQ10-03BPSKT0SS02
Key Features
- 1Detects metal objects with high accuracy, ensuring reliable operation in various industrial settings.
- 2Built with durable materials for long-lasting performance in harsh environments.
- 3Simple setup and integration into existing automation systems.
- 4Offers superior sensitivity for detecting even small metal objects.
- 5Suitable for use in manufacturing, logistics, and process automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing | Rectangular | Dimensions (W x H x D) | 10 mm x 28 mm x 16 mm |
| Sensing range Sn | 3 mm | Safe sensing range Sa | 2.43 mm |
| Installation type | Flush | Switching frequency | 2,000 Hz |
| Connection type | Connector M8, 3-pin | Switching output | PNP |
| Output function | NO | Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 | Special characteristic | Different oscillator frequency |
| Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 10 % |
| Voltage drop | ≤ 2 V | Time delay before availability | ≤ 100 ms |
| Hysteresis | 5 % ... 15 % | Reproducibility | ≤ 2 %3)#!#4) |
| Temperature drift (of Sr) | ± 10 % | EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA | No load current | 10 mA |
| Short-circuit protection | ✔ | Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | Ambient operating temperature | –25 °C ... +75 °C |
| Housing material | Plastic, VISTAL® | Sensing face material | Plastic, VISTAL® |
| Tightening torque, max. | ≤ 1 Nm | Note | The values are reference values which may vary |
| Stainless steel (V2A, 304) | 0.7 | Aluminum (Al) | 0.4 |
| Copper (Cu) | 0.3 | Brass (Br) | 0.5 |
| Remark | Associated graphic see "Installation" | A | 0 mm |
| B | 10 mm | C | 10.3 mm |
| D | 9 mm | E | 0 mm |
| F | 24 mm | G | 0 mm |
Specifications may be subject to change without notice
