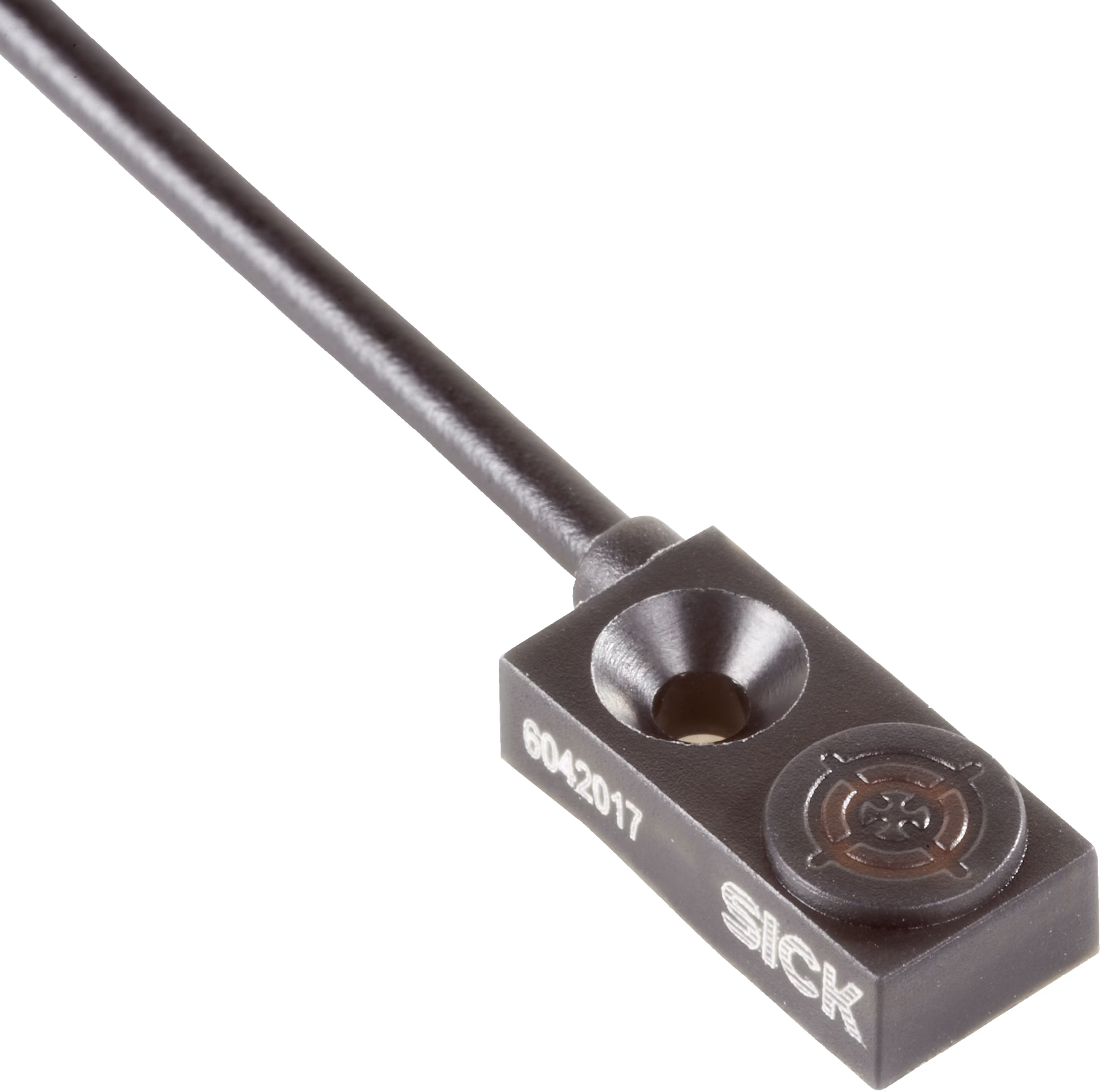

Product Model
IQ04-1B5POKW2S
Key Features
- 1High Accuracy: 1.5mm sensing range ensures precise detection.
- 2Durable Design: IP67 rating for robust performance in harsh environments.
- 3Easy Installation: Flush installation type with simple screw mounting.
- 4Compact Size: Rectangular housing dimensions (8 x 16 x 4mm) for space-saving.
- 5Reliable Output: PNP switching output with NC function for consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing | Rectangular | Dimensions (W x H x D) | 8 mm x 16 mm x 4 mm |
| Sensing range Sn | 1.5 mm | Safe sensing range Sa | 1.215 mm |
| Installation type | Flush | Switching frequency | 600 Hz |
| Connection type | Cable, 3-wire, 2 m | Switching output | PNP |
| Output function | NC | Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 | Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % | Voltage drop | < 1.5 V |
| Time delay before availability | ≤ 10 ms | Hysteresis | 1 % ... 15 % |
| Reproducibility | ± 1 % | Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 100 mA |
| Cable material | PVC | Conductor size | 0.09 mm² |
| Cable diameter | Ø 2.5 mm | Short-circuit protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | Ambient operating temperature | –25 °C ... +70 °C |
| Housing material | Plastic, PA6 | Sensing face material | Plastic, PA6 |
| Tightening torque, max. | 0.06 Nm | Note | The values are reference values which may vary |
| Stainless steel (V2A, 304) | Approx. 0.7 | Aluminum (Al) | Approx. 0.4 |
| Copper (Cu) | Approx. 0.3 | Brass (Br) | Approx. 0.4 |
| Remark | Associated graphic see "Installation" | A | 0 mm |
| B | 16 mm | C | 8 mm |
| D | 4.5 mm | E | 0 mm |
| F | 24 mm |
Specifications may be subject to change without notice
