Product Model

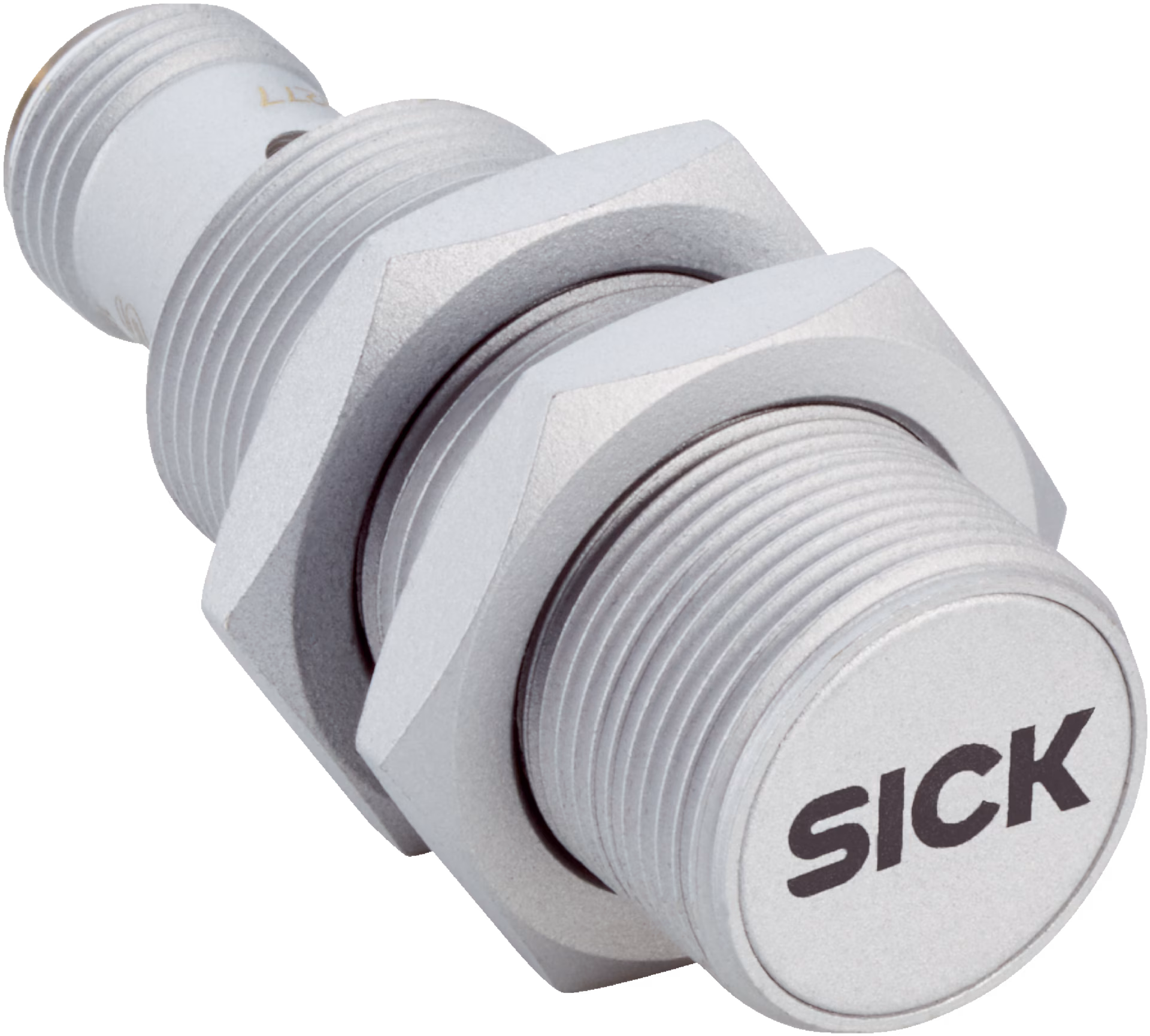

IMR18-08BPSTC0S
Key Features
- 1Advanced inductive technology for precise object detection.
- 2Compact design for easy integration into various industrial settings.
- 3High sensitivity and reliability in harsh environments.
- 4Compatible with a wide range of industrial automation systems.
- 5Long-lasting performance with a durable construction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing | Metric | Housing | Standard design |
| Thread size | M18 | Diameter | Ø 18 mm |
| Sensing range Sn | 8 mm | Safe sensing range Sa | 6.4 mm |
| Installation type | Flush | Switching frequency | 1,500 Hz |
| Connection type | Male connector M12, 4-pin | Switching output | PNP |
| Output function | NO | Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 | Special features | Reduction factor 1, Weld immune |
| Special applications | Welding range, Difficult application conditions | Items supplied | Mounting nut, brass, PTFE coating (2x)#!#Washer, brass, PTFE coating, with locking teeth (2x) |
| Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 10 % |
| Voltage drop | ≤ 1.8 V | Hysteresis | 3 % ... 15 % |
| Reproducibility | ≤ 2 % | Temperature drift (of Sr) | ≤ ± 10 % ≤ ± 15 % |
| Continuous current Ia | ≤ 200 mA | No load current | ≤ 15 mA |
| Off-state current | ≤ 0.1 mA | Short-circuit protection | ✔ |
| Magnetic field strength | ≤ 100 mT | Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –30 °C ... +85 °C | Housing material | PTFE coating, brass |
| Sensing face material | Plastic, PTFE coating | Housing length | 52 mm |
| Thread length | 36 mm | Tightening torque, max. | Typ. 15 Nm |
| Protection class | II | UL File No. | E191603 |
| Note | The values are reference values which may vary | Reduction factor | Reduction factor 1 |
| Stainless steel (V2A, 304) | 1 | Aluminum (Al) | 1 |
| Copper (Cu) | 1 | Brass (Br) | 1 |
| Remark | Associated graphic see "Installation" | A | 18 mm |
| B | 18 mm | C | 18 mm |
| D | 24 mm | E | 0 mm |
| F | 48 mm | G | 54 mm |
Specifications may be subject to change without notice
