Product Model

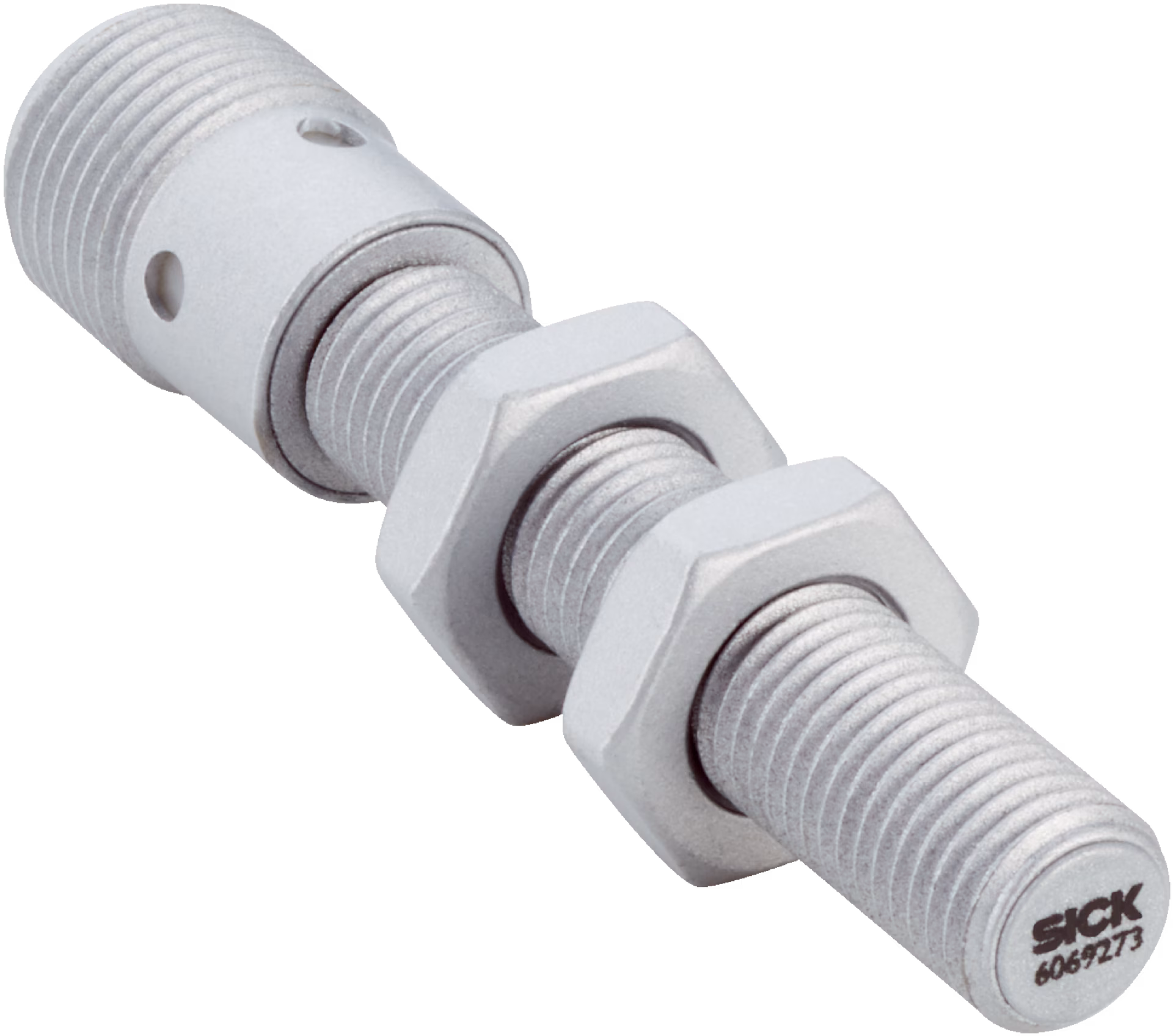

IMR08-02BPSTC0S
Key Features
- 1High Accuracy: Achieve precise detection with a sensing range of up to 2mm.
- 2Weld Immune: Designed to withstand welding sparks and harsh conditions.
- 3PNP/SPST-NO Output: Compatible with various control systems for seamless integration.
- 4IP68 Enclosure Rating: Ensures protection against dust and water, ideal for industrial use.
- 5Wide Operating Temperature: Function from -30°C to +85°C, suitable for diverse environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing | Metric | Housing | Standard design |
| Thread size | M8 | Diameter | Ø 8 mm |
| Sensing range Sn | 2 mm | Safe sensing range Sa | 1.6 mm |
| Installation type | Flush | Switching frequency | 1,000 Hz |
| Connection type | Male connector M12, 4-pin | Switching output | PNP |
| Output function | NO | Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 | Special features | Reduction factor 1, Weld immune |
| Special applications | Welding range, Difficult application conditions | Items supplied | Mounting nut, brass, PTFE coating (2x)#!#Washer, brass, PTFE coating, with locking teeth (2x) |
| Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 10 % |
| Voltage drop | ≤ 1.8 V | Hysteresis | 3 % ... 15 % |
| Reproducibility | ≤ 2 % | Temperature drift (of Sr) | ≤ ± 10 % ≤ ± 15 % |
| EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 150 mA |
| No load current | ≤ 15 mA | Off-state current | ≤ 0.1 mA |
| Short-circuit protection | ✔ | Magnetic field strength | ≤ 100 mT |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | Ambient operating temperature | –30 °C ... +85 °C |
| Housing material | PTFE coating, stainless steel | Sensing face material | Plastic, PTFE coating |
| Housing length | 57 mm | Thread length | 40 mm |
| Tightening torque, max. | Typ. 5 Nm | Protection class | II |
| UL File No. | E191603 | Note | The values are reference values which may vary |
| Reduction factor | Reduction factor 1 | Stainless steel (V2A, 304) | 1 |
| Aluminum (Al) | 1 | Copper (Cu) | 1 |
| Brass (Br) | 1 | Remark | Associated graphic see "Installation" |
| A | 8 mm | B | 8 mm |
| C | 8 mm | D | 6 mm |
| E | 0 mm | F | 12 mm |
| G | 24 mm |
