Product Model

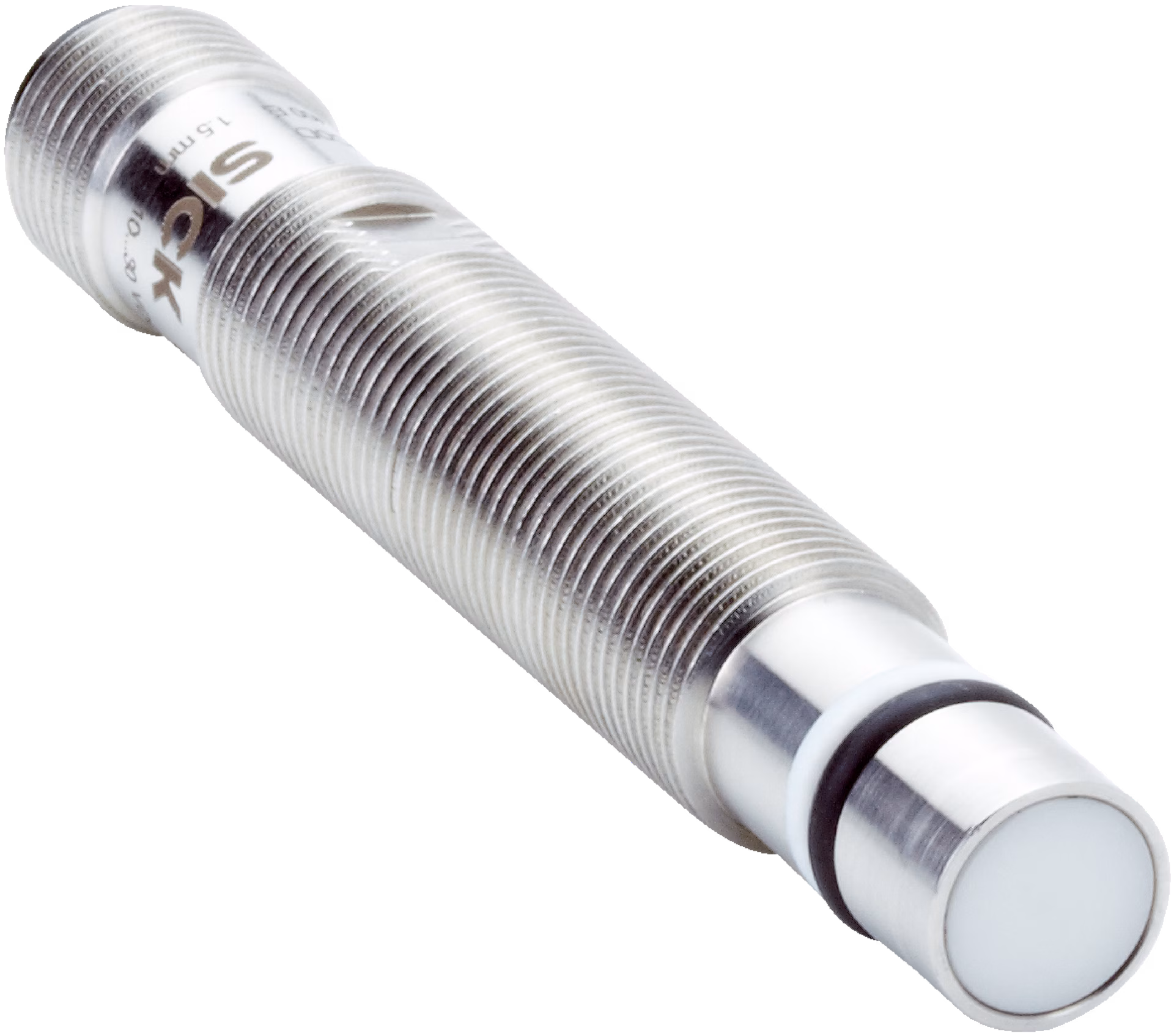

IMP12-1B5PPVC0D
Key Features
- 1High Precision Detection: Accurately detects metallic objects with utmost precision.
- 2Robust Performance: Designed to withstand harsh environments, including zones with coolants and lubricants.
- 3Long Service Life: Built with advanced ASIC technology for long-term reliability and minimal maintenance.
- 4Chemical Resistance: Resistant to high-pressure cleaning, foam cleaning, and P3 cleaning agents.
- 5Easy Installation: Quick and easy mounting due to optical adjustment indicators.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing | Metric | Thread size | M12 x 1 |
| Diameter | Ø 12 mm | Pressure resistance | ≤ 500 bar |
| Sensing range Sn | 1.5 mm | Safe sensing range Sa | 1.2 mm |
| Installation type | Flush | Switching frequency | 600 Hz |
| Connection type | Male connector M12, 4-pin | Switching output | PNP |
| Output function | Complementary | Electrical wiring | DC 4-wire |
| Enclosure rating | IP68 | Special features | High pressure resistant, Temperature resistance |
| Special applications | Hydraulic application | Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 20 % | Voltage drop | ≤ 2 V |
| Time delay before availability | ≤ 50 ms | Hysteresis | 1 % ... 15 % |
| Reproducibility | ≤ 7 % | Temperature drift (of Sr) | ± 10 %6)#!#± 15 %7) |
| EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 200 mA |
| Vacuum resistance | 10#!#Torr | Large sealing ring | 5.3 mm x 2.4 mm |
| Size support ring | 10 mm x 5.9 mm x 1 mm | Short-circuit protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | Ambient operating temperature | –25 °C ... +100 °C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 | Sensing face material | Ceramics, ZrO2 |
| Sealing ring material | FPM | Housing length | 78 mm |
| Thread length | 42 mm | Tightening torque, max. | ≤ 40 Nm |
| Note | The values are reference values which may vary | St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | Approx. 0.75 | Aluminum (Al) | Approx. 0.2 |
| Copper (Cu) | Approx. 0.12 | Brass (Br) | Approx. 0.34 |
| Remark | Associated graphic see "Installation" | B | 8 mm |
| C | 12 mm | D | 6 mm |
| F | 12 mm |
Specifications may be subject to change without notice
