Product Model

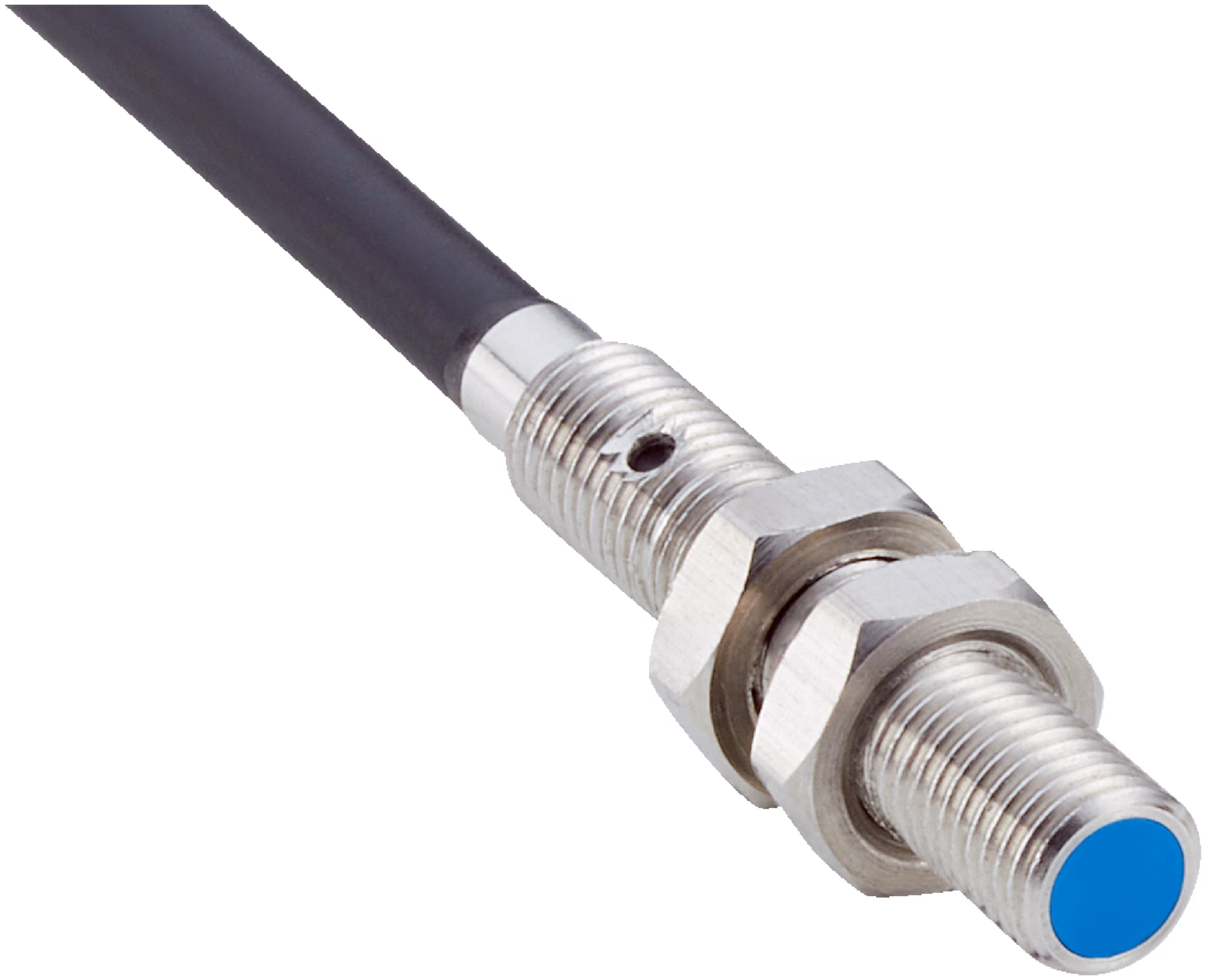

IMM04-01BNSVU2S
Key Features
- 1Precise Detection: Detects objects as close as 1 mm with high accuracy.
- 2Standard Design: Features a standard housing design for easy integration.
- 3Flush Installation: Ideal for flush mounting in tight spaces.
- 4DC Electrical Wiring: Compatible with DC electrical wiring for efficient operation.
- 5Reliable Performance: Designed for consistent performance in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing | Metric | Housing | Standard design |
| Thread size | M4 x 0.5 | Diameter | Ø 4 mm |
| Sensing range Sn | 1 mm | Safe sensing range Sa | 0.81 mm |
| Installation type | Flush | Switching frequency | 4,200 Hz |
| Connection type | Cable, 3-wire, 2 m | Switching output | NPN |
| Output function | NO | Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 | Special features | Visual adjustment indicator |
| Items supplied | Mounting nut, V2A stainless steel (2x)#!#Washer, V2A stainless steel, with locking teeth (2x)#!#Cable flag, Polymatic 50 (1 x) | Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 20 % | Voltage drop | ≤ 2 V |
| Time delay before availability | ≤ 10 ms | Hysteresis | 1 % ... 15 % |
| Reproducibility | ≤ 2.5 % | Temperature drift (of Sr) | ≤ 10 % |
| EMC | EN 60947-5-2 | Continuous current Ia | ≤ 100 mA |
| Cable material | PUR | Conductor size | 0.08 mm² |
| Cable diameter | Ø 2.5 mm | Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ | Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +70 °C | Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, LCP | Housing length | 22 mm |
| Thread length | 20 mm | Tightening torque, max. | ≤ 0.8 Nm |
| UL File No. | NRKH.E348498 | Note | The values are reference values which may vary |
| St37 steel (Fe) | 1 | Stainless steel (V2A, 304) | Approx. 0.7 |
| Aluminum (Al) | Approx. 0.49 | Copper (Cu) | Approx. 0.4 |
| Brass (Br) | Approx. 0.55 | Remark | Associated graphic see "Installation" |
| B | 3 mm | C | 4 mm |
| D | 3 mm | F | 8.5 mm |
Specifications may be subject to change without notice
