Product Model

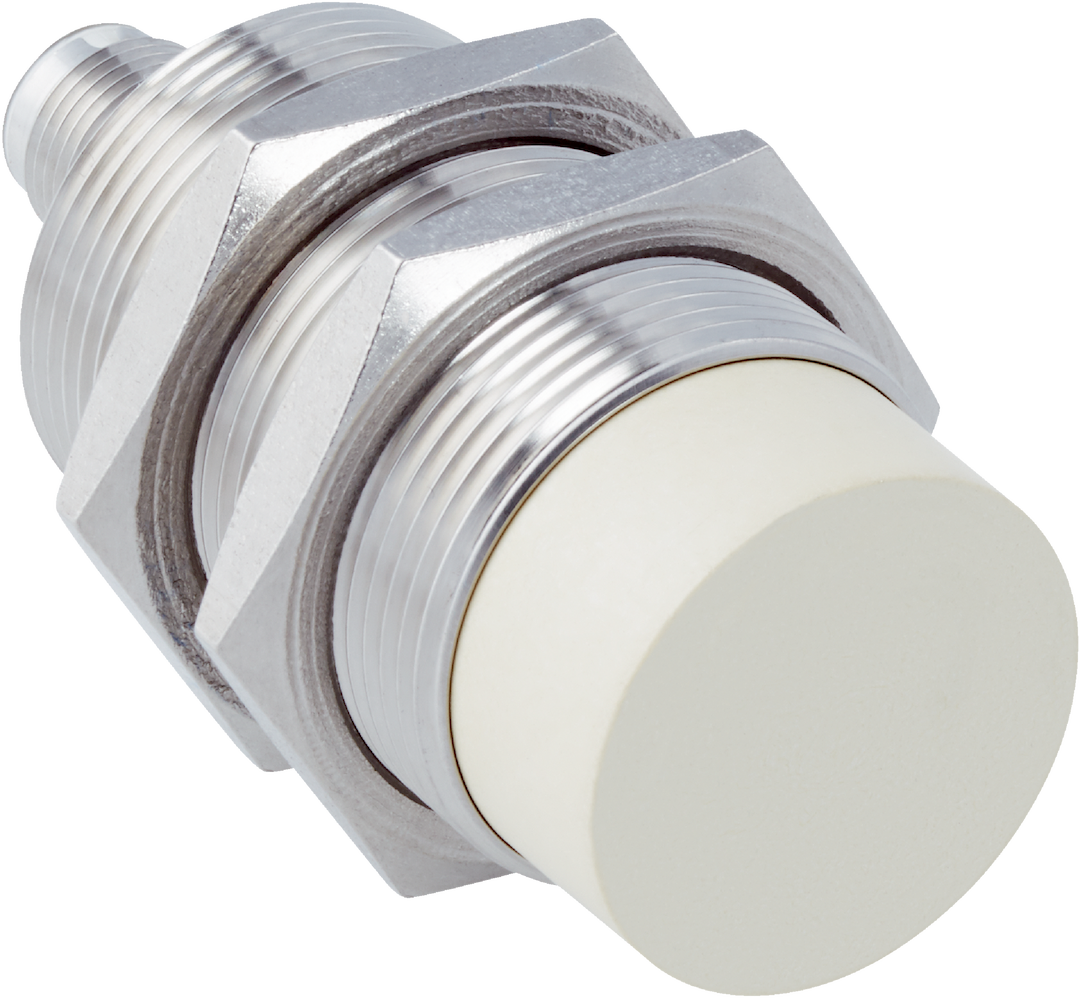

IMF30-20NPPNC0S
Key Features
- 1Equipped with SICK ASIC technology for precise and reliable detection.
- 2Constructed with a stainless steel body and a plastic active surface, ensuring durability and resistance to harsh environments.
- 3Features a visual signalization system for quick and simple setup.
- 4Enables efficient data exchange and diagnostics, enhancing system integration.
- 5Meets stringent standards for chemical resistance and hygiene, suitable for food processing and cleanroom applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing | Metric | Housing | Standard design |
| Thread size | M30 x 1.5 | Diameter | Ø 30 mm |
| Sensing range Sn | 20 mm | Safe sensing range Sa | 16.2 mm |
| Installation type | Non-flush | Switching frequency | 500 Hz |
| Connection type | Male connector M12, 4-pin | Switching output | PNP |
| Output function | Complementary | Electrical wiring | DC 4-wire |
| Enclosure rating | IP682)#!#IP69K3) | Special features | Resistant to cleaning agents, IO-Link, Temperature resistance |
| Special applications | Hygienic and washdown zones, Difficult application conditions | Items supplied | Mounting nut, V4A stainless steel (2x) |
| Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 10 % |
| Voltage drop | ≤ 2 V | Hysteresis | 3 % ... 20 % |
| Reproducibility | ≤ 2 % | Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 200 mA |
| No load current | ≤ 10 mA | Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ | Power-up pulse | ≤ 5 ms |
| Shock and vibration resistance | 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz / 1 mm; 55 Hz ... 500 Hz / 60 g | Ambient operating temperature | –40 °C ... +100 °C |
| Housing material | Stainless steel V4A, DIN 1.4404 / AISI 316L | Sensing face material | Plastic, LCP |
| Housing length | 70 mm | Thread length | 40 mm |
| Tightening torque, max. | Typ. 100 Nm | Protection class | III |
| UL File No. | E181493 | Communication interface | IO-Link V1.0 |
| Communication Interface detail | COM2 (38,4 kBaud) | Process data length | 1 Byte |
| Process data structure | Bit 0 = Sr reached#!#Bit 1 = Sa reached | Note | The values are reference values which may vary |
| Stainless steel (V2A, 304) | Approx. 0.78 | Aluminum (Al) | Approx. 0.44 |
| Copper (Cu) | Approx. 0.36 | Brass (Br) | Approx. 0.46 |
| Remark | Associated graphic see "Installation" | A | 20 mm |
| B | 62 mm | C | 30 mm |
| D | 60 mm | E | 20 mm |
| F | 160 mm |
Specifications may be subject to change without notice
