Product Model

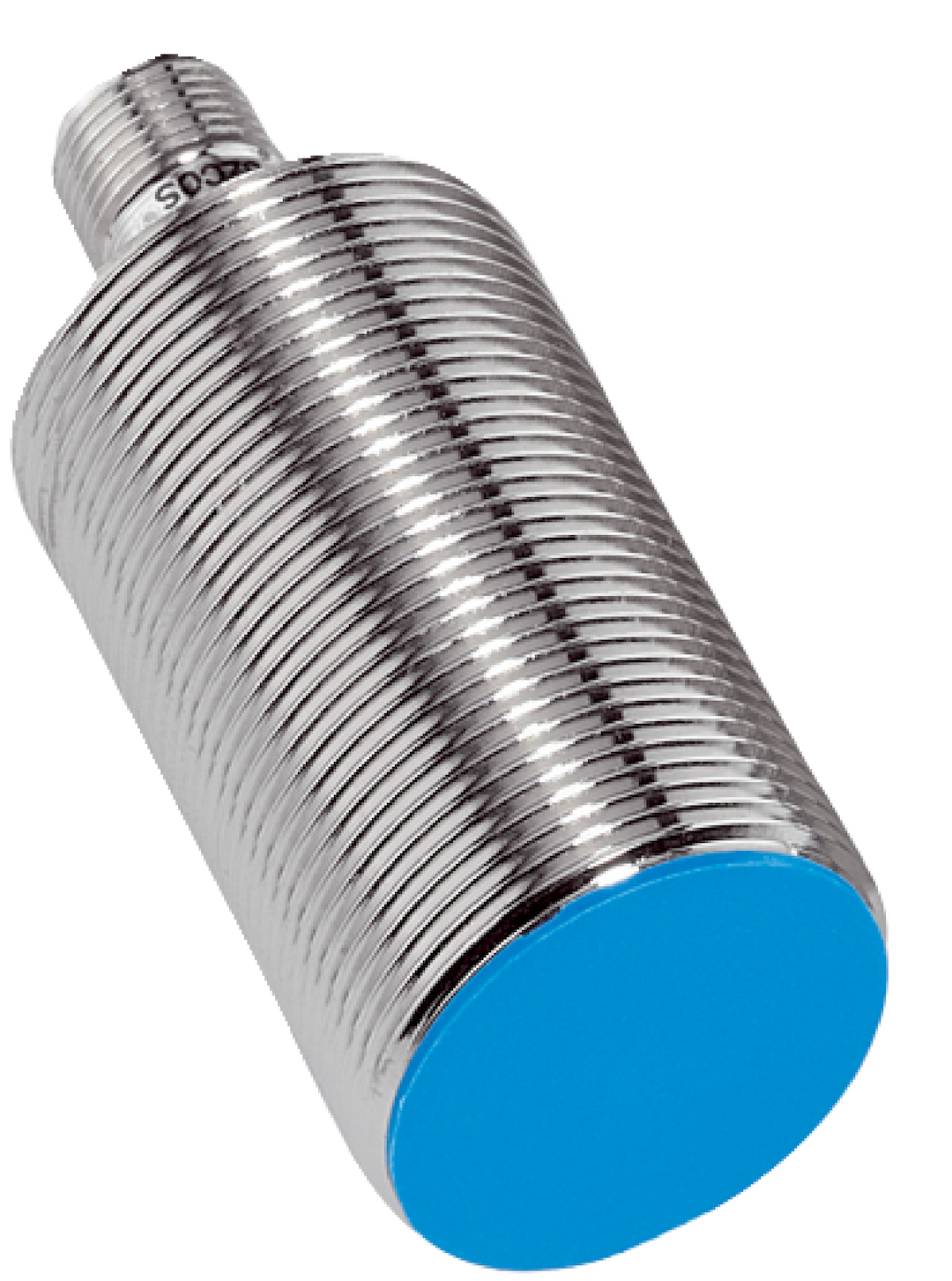

IME30-12BPOZC0SS14
Key Features
- 1Detects objects from 1.5 mm to 38 mm with high accuracy.
- 2Built with nickel-plated brass housing and hotmelt molding for enhanced shock and vibration resistance.
- 3Ensures precise switching points and high repeatability of values through integrated ASIC chip.
- 4Operates from –25 °C to +75 °C, suitable for various industrial conditions.
- 5Provides excellent protection against dust and water, ensuring long-term reliability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing | Metric | Housing | Standard design |
| Thread size | M30 x 1.5 | Diameter | Ø 30 mm |
| Sensing range Sn | 12 mm | Safe sensing range Sa | 9.72 mm |
| Installation type | Flush | Switching frequency | 500 Hz |
| Connection type | Male connector M12, 4-pin | Switching output | PNP |
| Output function | NC | Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 | Special characteristic | Extended operating temperature#!#Increased constant current |
| Items supplied | Mounting nut, brass, nickel-plated (2x) | Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % | Voltage drop | ≤ 2 V |
| Time delay before availability | ≤ 125 ms | Hysteresis | 3 % ... 15 % |
| Reproducibility | ≤ 2 % | Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 400 mA |
| No load current | ≤ 10 mA | Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ | Shock and vibration resistance | 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm |
| Ambient operating temperature | –40 °C ... +60 °C | Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 | Housing length | 71 mm |
| Thread length | 54 mm | Tightening torque, max. | ≤ 100 Nm |
| UL File No. | NRKH.E181493 | Note | The values are reference values which may vary |
| St37 steel (Fe) | 1 | Stainless steel (V2A, 304) | Approx. 0.8 |
| Aluminum (Al) | Approx. 0.45 | Copper (Cu) | Approx. 0.4 |
| Brass (Br) | Approx. 0.4 | Remark | Associated graphic see "Installation" |
| B | 60 mm | C | 30 mm |
| D | 45 mm | F | 120 mm |
Specifications may be subject to change without notice
