Product Model

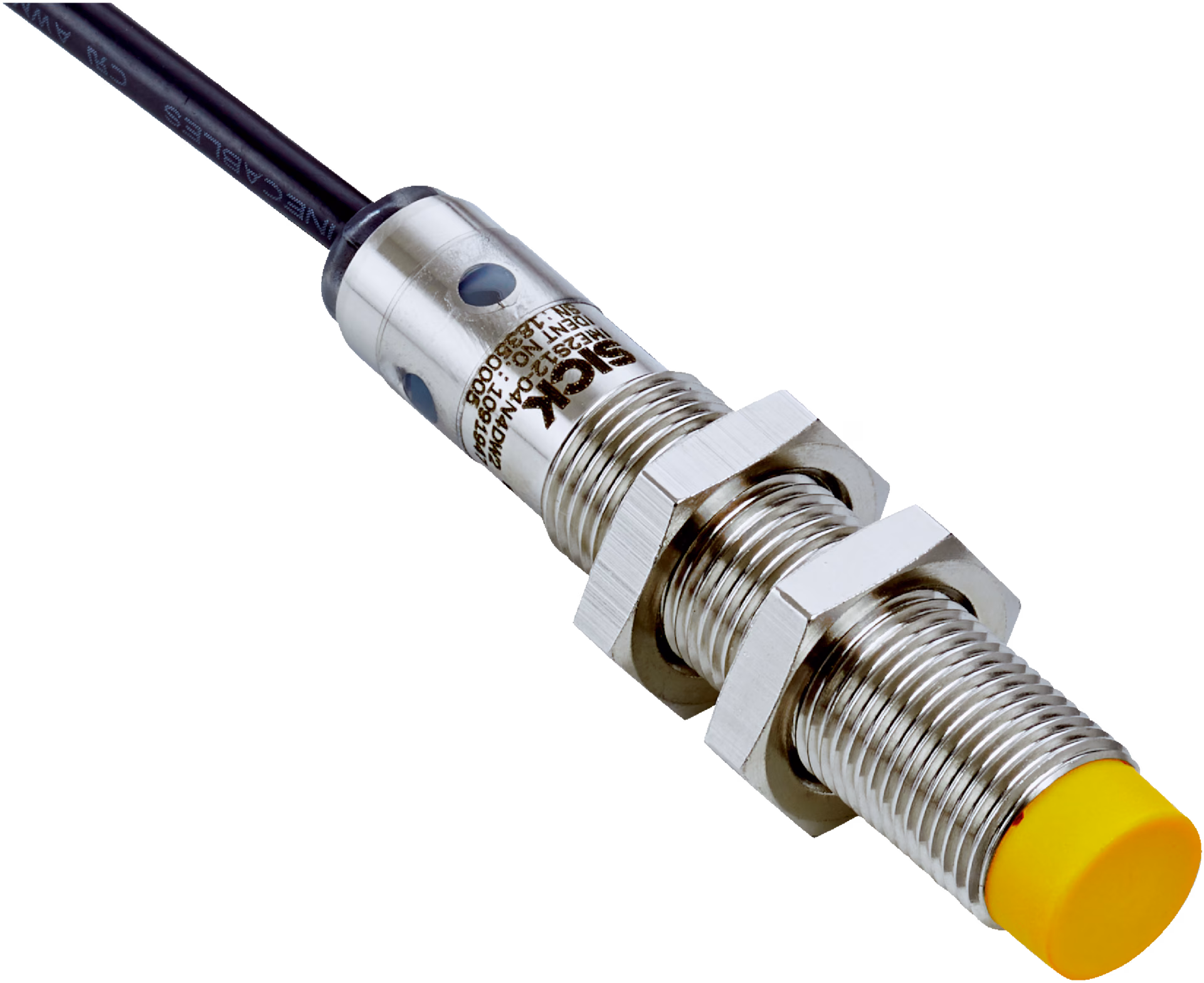

IME2S12-04N4DW2
Key Features
- 1Inductive Sensor Principle: Utilizes inductive sensing for reliable operation.
- 2IP67 Rating: Ensures protection against dust and water, making it suitable for harsh environments.
- 3Sensing Range of 4mm: Accurately detects objects within a 4mm range, ensuring precise safety.
- 4SIL 2 and PL d Compliance: Meets stringent safety standards for SIL 2 and PL d, ensuring high reliability.
- 5Cable Length of 2m: Conveniently connects to devices with a 2-meter cable, reducing installation complexity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sensor principle | Inductive | Number of safe outputs | 2 |
| Housing diameter | M12 | Sensing range Sn | 4 mm |
| Safe switch on distance Sao | 3.2 mm | Safe switch off distance Sar | 6 mm |
| Active sensor surfaces | 1 | Actuation frequency | ≤ 100 Hz |
| Items supplied | Including mounting nuts, brass, nickel-plated (2x) | Safe series connections | None, only individual wiring (with diagnostics) |
| Connection type_Length of cable | 2 m | Connection type_Cable diameter | 3.9 mm |
| Connection type_Conductor cross section | 0.25 mm² | Connection type_Bend radius (with fixed installation) | > 6 x cable diameter |
| Connection type_Bend radius (with moving cable) | > 10 x cable diameter | Connection type_Cable material | PVC |
| Connection type_Conductor material | Copper | IO-Link Safety_WCDT | ≤ 1 ms |
| IO-Link Safety_OFDT | ≤ 20 ms | Display elements_Diagnostics indicator | ✔ |
| Display elements_Status display | ✔ | Protection class | III (IEC 61140) |
| Rated insulation voltage Ui | 28.8 V | Rated impulse withstand voltage Uimp | 1,500 V |
| Supply voltage Vs | 24 V DC (19.2 V DC ... 28.8 V DC) | Power consumption | ≤ 20 mA |
| Type of output | Self-monitoring semiconductor outputs (OSSDs) | Response time | ≤ 1 ms |
| Release time | ≤ 1 ms | Risk time | ≤ 20 ms |
| Switch-on time | 1 s | Design | Cylindrical |
| Housing diameter | M12 | Housing length | 63 mm |
| Thread length | 36.9 mm | Material_Housing | Nickel-plated brass |
| Material_Sensor surface | VISTAL® | Material_Cable | PVC |
| Installation type | Non-flush |
Specifications may be subject to change without notice
