Product Model

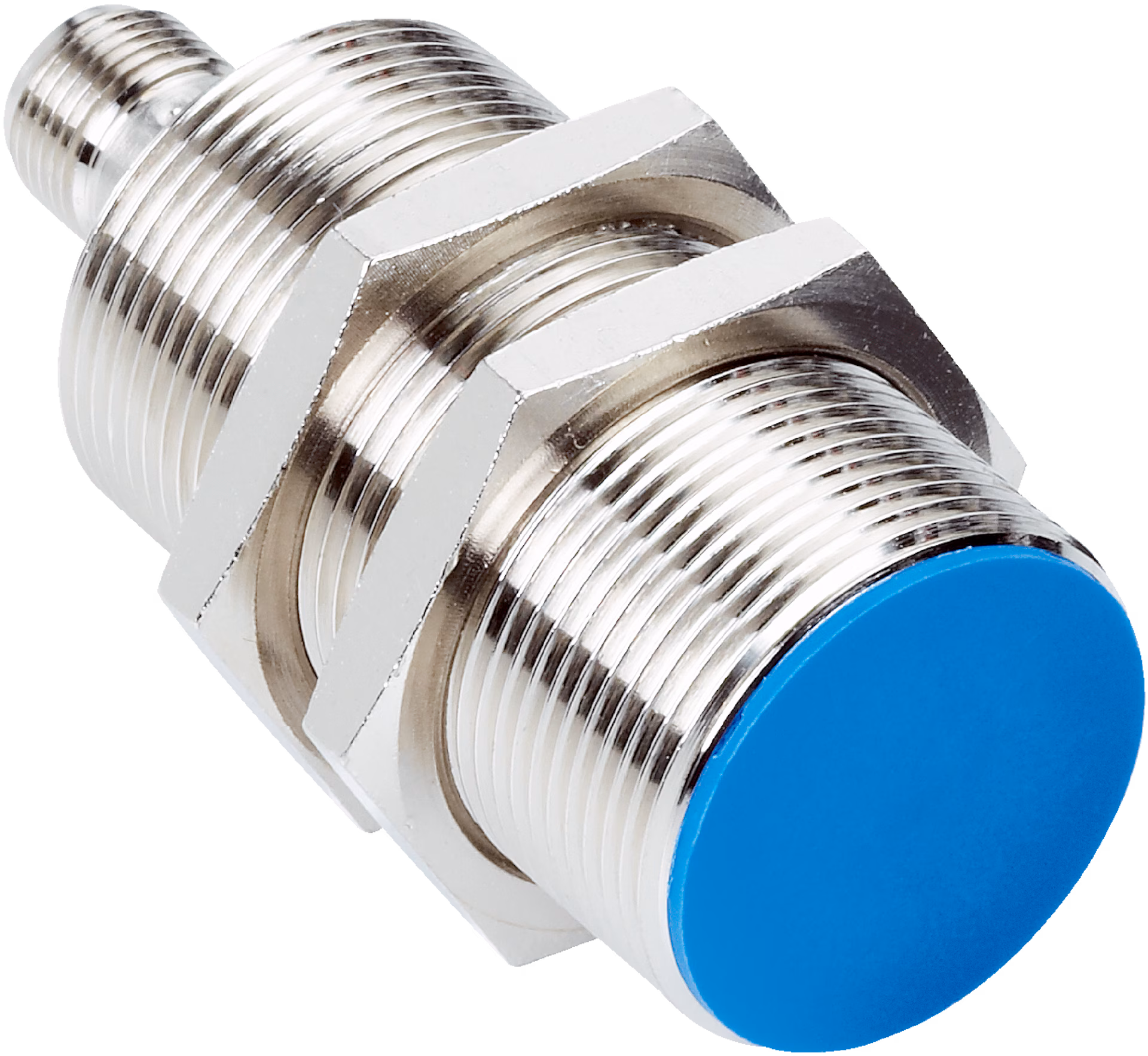

IMC30-10BPDZC0SA05
Key Features
- 1Detects speed changes with high accuracy, ensuring reliable operation in various industrial applications.
- 2Easily configurable via IO-Link, allowing for precise settings and extended diagnostics.
- 3Built with a metal housing and nickel-plated brass, providing excellent shock and vibration resistance.
- 4Operates within a sensing range of up to 10 mm flush, suitable for diverse industrial environments.
- 5Offers detailed diagnostics and visualization through IO-Link, enhancing machine performance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing | Metric | Thread size | M30 x 1.5 |
| Diameter | Ø 30 mm | Sensing range Sn | 10 mm |
| Safe sensing range Sa | 8.1 mm | Installation type | Flush |
| Connection type | Male connector M12, 4-pin | Switching output | PNP |
| Output QImp | Pulse output (pulse train corresponds to the activation rate) | Output Q | Output type (dependant on the adjusted threshold) |
| Output function | NO | Electrical wiring | DC 4-wire |
| Speed range, adjustable via two thresholds | 6 ... 12,000 pulses/min | Acceleration range, adjustable | 0.1 ... 2 pulses/s² |
| Time delay, adjustable | Mode 0: No start-up delay, Mode 1: 0...254 s, configurable, Mode 2: When reaching the upper threshold | Enclosure rating | IP67 |
| Special features | Speed monitor | Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 10 % |
| Voltage drop | ≤ 2.5 V | Hysteresis | 5 % ... 15 % |
| Reproducibility | ≤ 2 % | Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 100 mA |
| Short-circuit protection | ✔ | Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm | Status indicator QImp | LED, yellow |
| Status indicator Q | LED, blue | Ambient operating temperature | –25 °C ... +75 °C |
| Housing material | Brass, nickel-plated | Sensing face material | Plastic, LCP |
| Housing length | 71 mm | Thread length | 54 mm |
| Tightening torque, max. | ≤ 100 Nm | Minimum response time | Mode speed monitoring 50 ms#!#Mode acceleration monitoring 1 sec |
| Communication interface | IO-Link V1.0 | Communication Interface detail | COM2 (38,4 kBaud) |
| Cycle time | 5 ms | Process data length | 16 Bit |
| Process data structure | 14 bit measured value#!#1 bit pulse output#!#1 bit switching output | Factory setting | Operating mode: acceleration monitoring#!#Upper/lower threshold speed: 200/300 pulses/min#!#Threshold acceleration: 1 pulse/sec²#!#Start-up delay mode: time delay#!#Time delay: 5 sec |
| Note | The values are reference values which may vary | St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | 0.8 | Aluminum (Al) | 0.45 |
| Copper (Cu) | 0.4 | Brass (Br) | 0.4 |
| Remark | Associated graphic see "Installation" | B | 30 mm |
| C | 30 mm | D | 30 mm |
| F | 80 mm |
Specifications may be subject to change without notice
