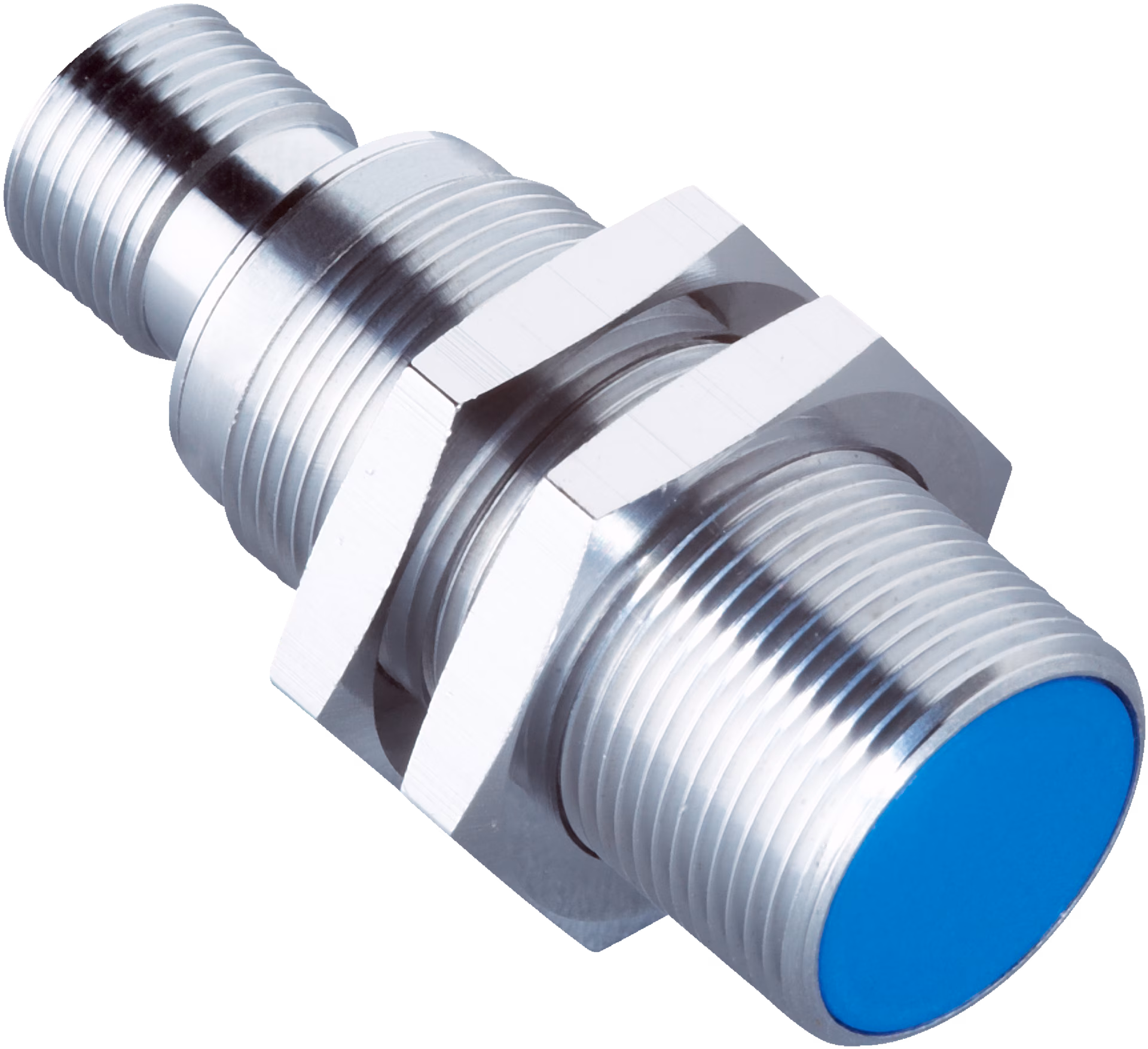

Product Model

IMA18-10BE1ZC0K

Manufacturer

sick

Key Features

1High precision detection with a sensing range of 0 mm to 10 mm.
2Robust cylindrical thread design with M18 x 1 thread size and Ø 18 mm diameter.
3Reliable quasi-flush installation type for stable performance.
4Analog output function for precise signal processing.
5IP67 enclosure rating for protection against harsh environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Housing	Metric	Thread size	M18 x 1
Diameter	Ø 18 mm	Sensing range Sn	0 mm ... 10 mm
Installation type	Quasi-flush	Connection type	Male connector M12, 4-pin
Output function	Analog	Repeatability (Tanot constant)	0.3 mm
Repeatability (Taconstant)	± 0.02 mm	Resolution	≤ 2 µm
Enclosure rating	IP67	Special features	Analog output, triple sensing range
Items supplied	Mounting nut, brass, chromium-plated (2x)#!#Toothed washer, stainless steel (2 x)	Supply voltage	15 V DC ... 30 V DC
Ripple	≤ 20 %	Time delay before availability	≤ 50 ms
Temperature drift (of Sr)	≤ 10 %	No load current	≤ 12 mA
Load current	± 10 mA	Max. load resistance	≤ 400 Ω Ub = 15 V#!#≤ 1,000 Ω Ub = 30 V
Output voltage QA1	s = 0 mm: 0 V/-0 +0,4 V (23 °C)#!#s = 5 mm: +5,2 V/ +-0,4 V (23 °C)#!#s = 10 mm: +10 V/ +-0,4 V (23 °C)	Output current QA2	s = 0 mm: 4 mA/ +-0,8 mA (23 °C)#!#s = 10 mm: 20 mA +/-0,8 mA (23 °C)
Output voltage	0 V ... 10 V	Bandwidth	500 Hz
Short-circuit protection	✔	Ambient operating temperature	–25 °C ... +70 °C
Housing material	Brass, chromium-plated	Sensing face material	Plastic, PTB
Housing length	48.5 mm	Thread length	32 mm
Note	The values are reference values which may vary	Stainless steel (V2A, 304)	Approx. 0.6
Aluminum (Al)	Approx. 0.18	Copper (Cu)	Approx. 0.15
Brass (Br)	Approx. 0.28	Remark	Associated graphic see "Installation"
A	10 mm	B	26 mm
C	18 mm	D	30 mm
E	4 mm	F	100 mm

Specifications may be subject to change without notice
