Product Model

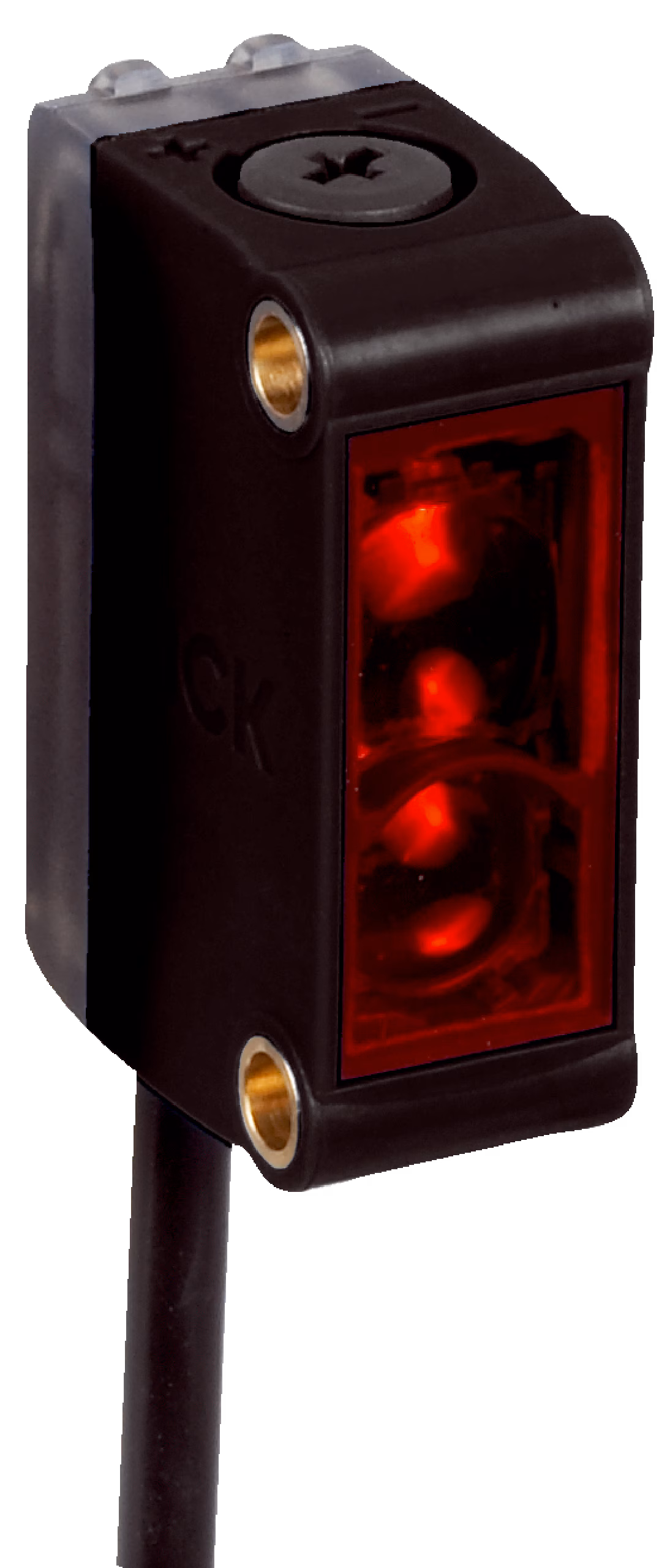

GTB6-F7441S76
Key Features
- 1High Precision Detection: The GTB6-F7441S76 offers precise detection with infrared light, ensuring reliable performance in various industrial settings.
- 2Durable Construction: Built with ABS plastic housing and designed for harsh environments, this sensor withstands demanding conditions.
- 3IP67 Enclosure Rating: Protected against dust and water, the sensor ensures continuous operation even in challenging ambient conditions.
- 4Easy Installation: Equipped with a cable featuring an M12 male connector, this sensor is easy to integrate into your industrial automation system.
- 5Long-Lasting Performance: Utilizing the latest ASIC technology from SICK, the GTB6-F7441S76 provides long-lasting performance and high reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression |
| Sensing range max. | 5 mm ... 500 mm | Sensing range | 50 mm ... 450 mm |
| Polarisation filters | No | Emitted beam_Light source | LED2) |
| Emitted beam_Type of light | Infrared light | Emitted beam_Light spot size (distance) | Ø 9 mm (100 mm) |
| Key LED figures_Wave length | 850 nm | Adjustment | Mechanical spindle, 5 turns, non-sealed |
| Supply voltage UB | 10 V DC ... 30 V DC | Ripple | ± 10 % |
| Current consumption | 30 mA | Protection class | III |
| Digital output_Type | PNP | Digital output_Switching mode | Light switching |
| Digital output_Signal voltage PNP HIGH/LOW | VS- (≤ 3 V) / approx. 0 V | Digital output_Output current Imax. | ≤ 100 mA4) |
| Digital output_Response time | < 1 ms5) | Digital output_Switching frequency | 500 Hz6) |
| Output function | Complementary | Circuit protection | A7)#!#B8)#!#D9) |
| Housing | Rectangular | Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable with M12 male connector, 4-pin | Connection detail_Conductor size | 0.14 mm² |
| Connection detail_Length of cable (L) | 300 mm1) | Material_Housing | Plastic, ABS/PC |
| Material_Front screen | Plastic, PMMA | Material_Cable | Plastic, PVC |
| Weight | 20 g |
Specifications may be subject to change without notice
