Product Model

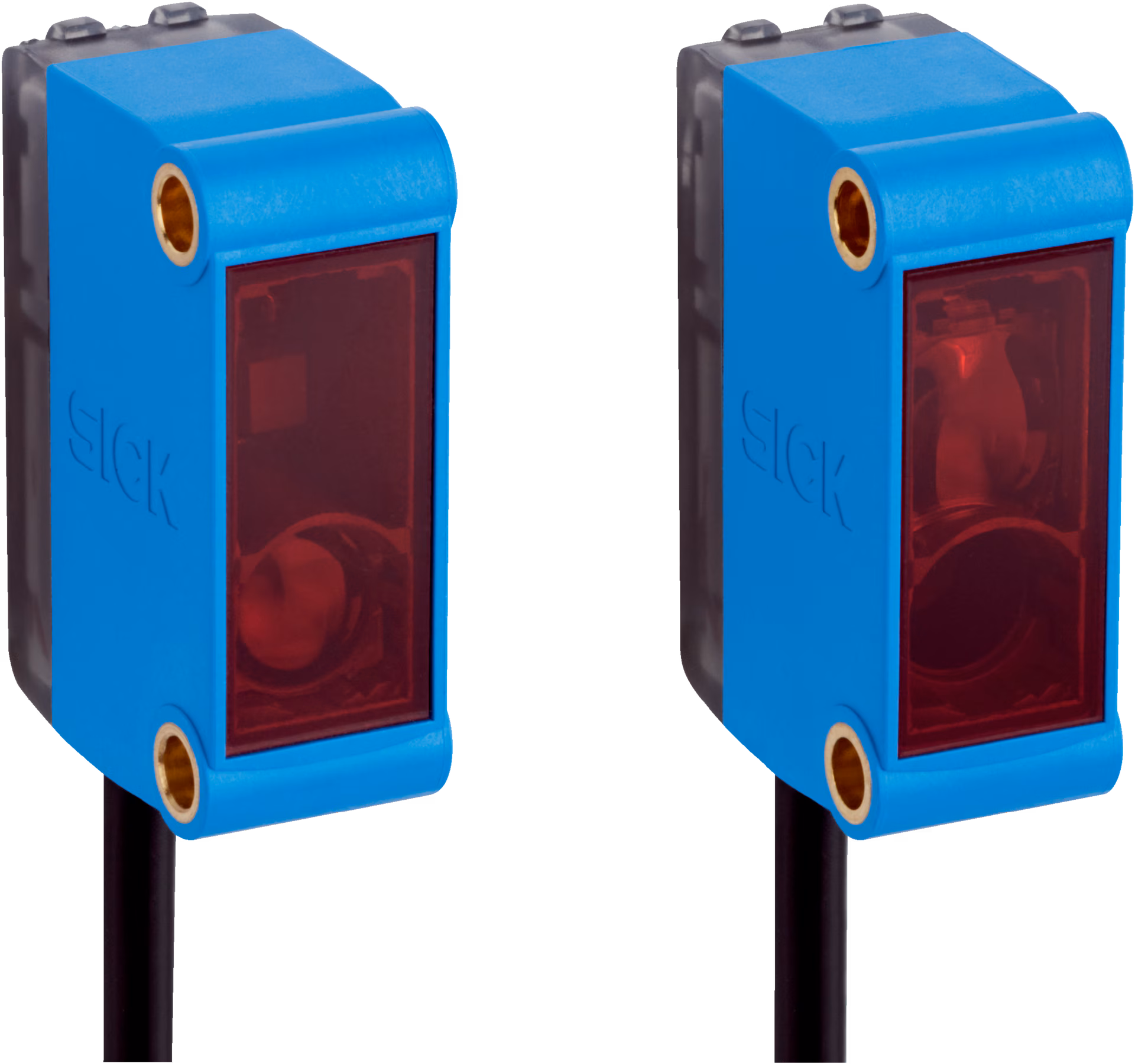

GSE6-P1111
Key Features
- 1High Precision Sensing: Accurate detection with a sensing range of 0 m to 15 m.
- 2Robust Design: Durable housing with IP67 rating, suitable for harsh environments.
- 3Easy Installation: Compact dimensions (12 mm x 31.5 mm x 21 mm) and simple mounting options.
- 4Low Power Consumption: Only 30 mA current consumption, ideal for energy-efficient systems.
- 5Fast Response Time: Responds in under 500 µs, ensuring quick and reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Through-beam photoelectric sensor | Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m | Polarisation filters | No |
| Emitted beam_Light source | PinPoint LED1) | Emitted beam_Type of light | Visible red light |
| Emitted beam_Light spot size (distance) | Ø 375 mm (12 m) | Key LED figures_Wave length | 650 nm |
| Adjustment | None | Part number of individual components | 2058063 GS6-D1311 2058078 GE6-P1111 |
| Supply voltage UB | 10 V DC ... 30 V DC | Ripple | ± 10 % |
| Current consumption | 30 mA | Protection class | III |
| Digital output_Type | PNP | Digital output_Switching mode | Light/dark switching |
| Digital output_Switching mode selector | Selectable via light/dark selector | Digital output_Signal voltage PNP HIGH/LOW | VS- (≤ 3 V) / approx. 0 V |
| Digital output_Output current Imax. | ≤ 100 mA4) | Digital output_Response time | < 500 µs5) |
| Digital output_Switching frequency | 1,000 Hz6) | Circuit protection | A7)#!#B8)#!#D9) |
| Housing | Rectangular | Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 2 m | Connection detail_Conductor size | 0.14 mm² |
| Connection detail_Length of cable (L) | 2 m1) | Material_Housing | Plastic, ABS/PC |
| Material_Front screen | Plastic, PMMA | Material_Cable | Plastic, PVC |
| Weight | 170 g |
Specifications may be subject to change without notice
