Product Model

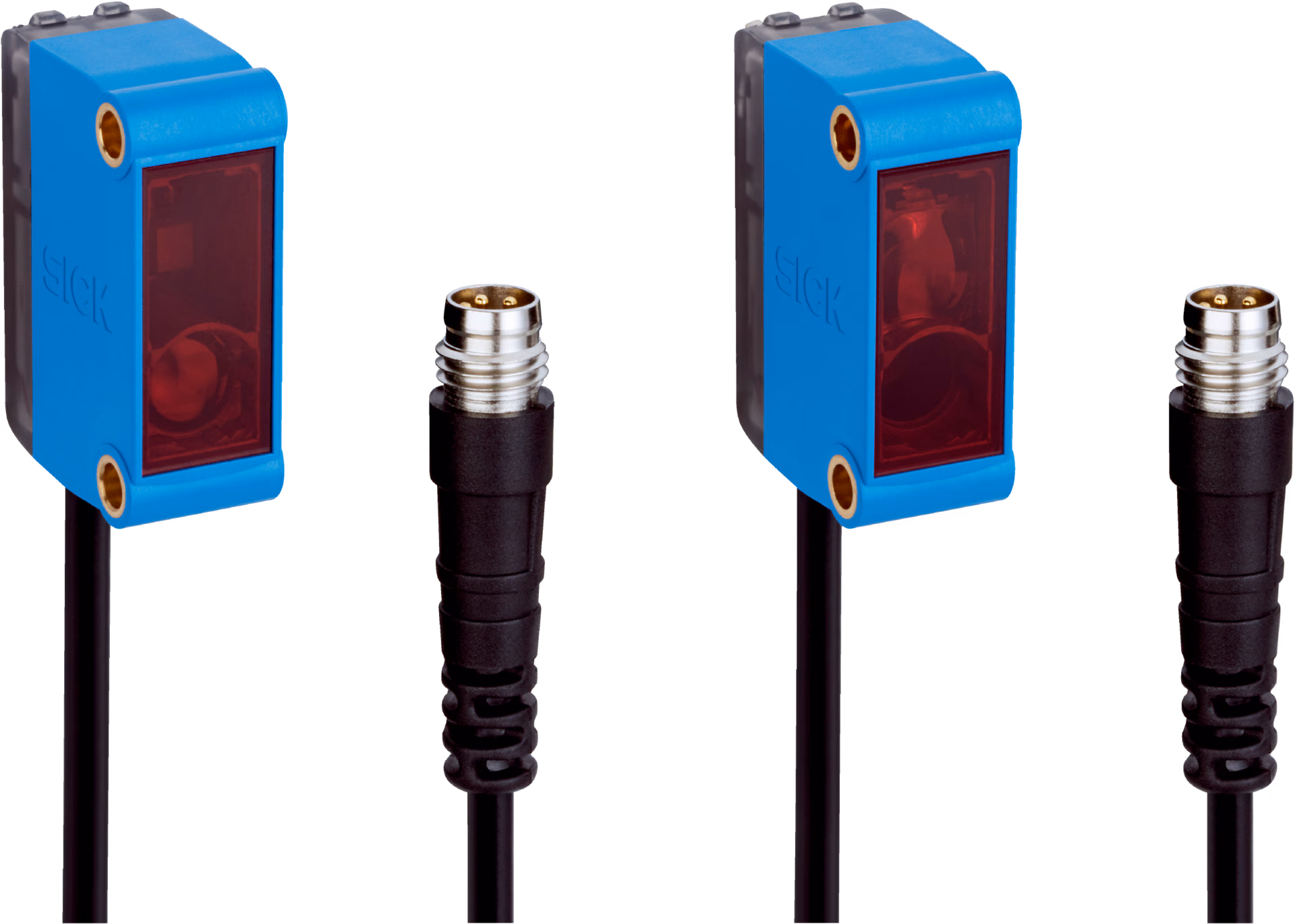

GSE6-N6112
Key Features
- 1High-Performance Detection: Reliable detection of objects with a visible red light and precise PinPoint LED.
- 2Durable Design: Built with stainless steel mounting bracket and ABS/PC housing for long-lasting durability.
- 3Easy Installation: Quick and secure mounting with M3 threaded holes and user-friendly potentiometers.
- 4IP67 Enclosure Rating: Protected against dust and water, ensuring reliable operation in harsh environments.
- 5High Switching Frequency: Fast response time of less than 500 µs and switching frequency of 1,000 Hz for efficient operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Through-beam photoelectric sensor | Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m | Polarisation filters | No |
| Emitted beam_Light source | PinPoint LED1) | Emitted beam_Type of light | Visible red light |
| Emitted beam_Light spot size (distance) | Ø 375 mm (12 m) | Key LED figures_Wave length | 650 nm |
| Adjustment | None | Items supplied | Stainless steel mounting bracket (1.4301/304) BEF-W100-A |
| Supply voltage UB | 10 V DC ... 30 V DC | Ripple | ± 10 % |
| Current consumption | 30 mA | Protection class | III |
| Digital output_Type | NPN | Digital output_Switching mode | Light/dark switching |
| Digital output_Switching mode selector | Selectable via light/dark selector | Digital output_Signal voltage PNP HIGH/LOW | VS- (≤ 3 V) / approx. 0 V |
| Digital output_Output current Imax. | ≤ 100 mA4) | Digital output_Response time | < 500 µs5) |
| Digital output_Switching frequency | 1,000 Hz6) | Circuit protection | A7)#!#B8)#!#D9) |
| Housing | Rectangular | Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable with M8 male connector, 4-pin | Connection detail_Conductor size | 0.14 mm² |
| Connection detail_Length of cable (L) | 300 mm1) | Material_Housing | Plastic, ABS/PC |
| Material_Front screen | Plastic, PMMA | Material_Cable | Plastic, PVC |
| Weight | 40 g |
Specifications may be subject to change without notice
