Product Model

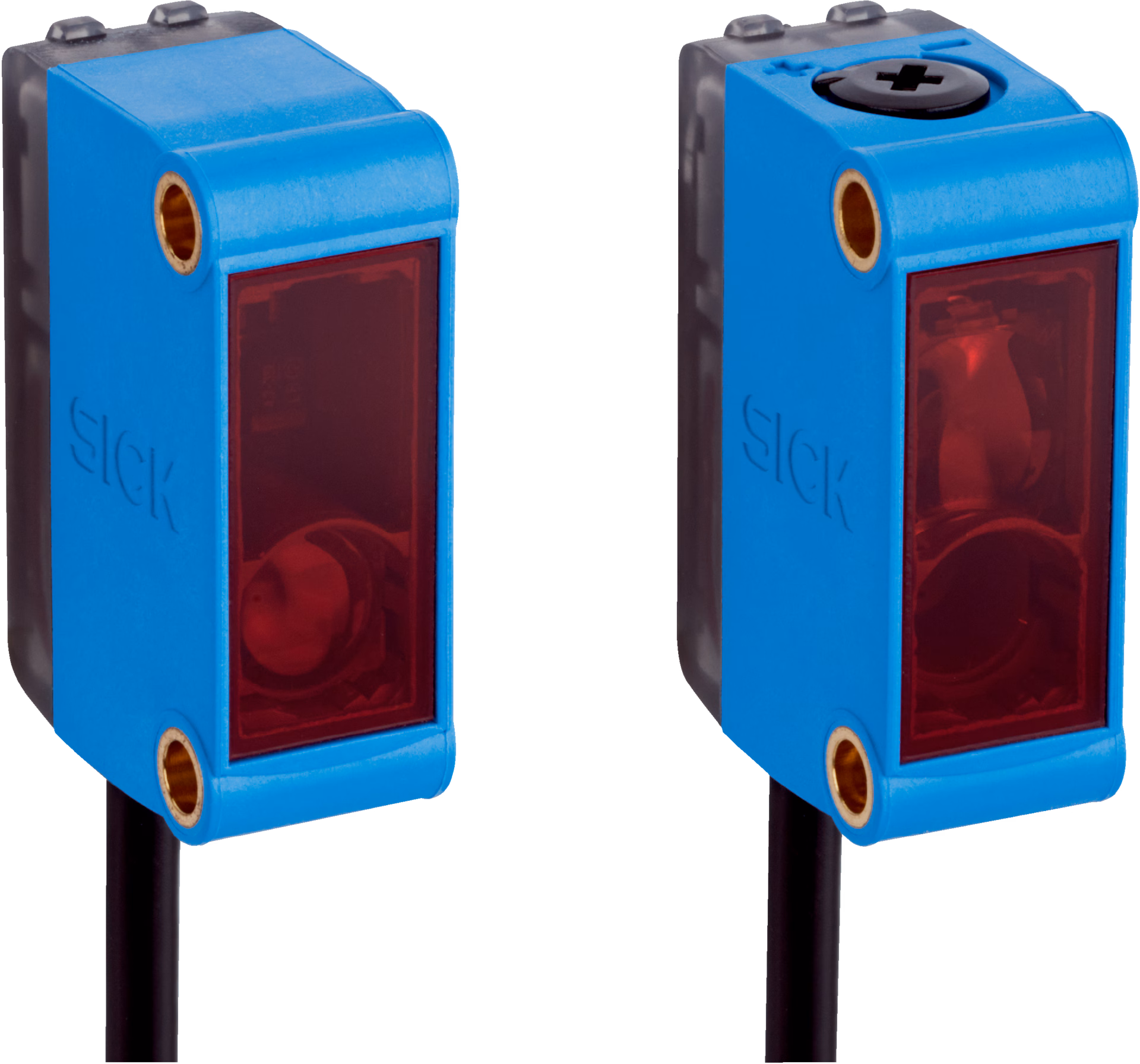

GSE6-N1212

Manufacturer

sick

Key Features

1Robust Design: Built with a stainless steel mounting bracket for maximum durability and resistance to chemicals.
2Precise Detection: Utilizes PinPoint LEDs with a wavelength of 650 nm for accurate object detection.
3Adjustable Sensing Range: Features a potentiometer for easy adjustment of the sensing range up to 270°.
4High-Temperature Resistance: Operates within a wide temperature range from -40°C to +70°C for storage and -25°C to +55°C during operation.
5IP67 Enclosure Rating: Ensures reliable performance in challenging environments with its IP67 enclosure rating.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Functional principle	Through-beam photoelectric sensor	Sensing range max.	0 m ... 15 m
Sensing range	0 m ... 10 m	Polarisation filters	No
Emitted beam_Light source	PinPoint LED1)	Emitted beam_Type of light	Visible red light
Emitted beam_Light spot size (distance)	Ø 375 mm (12 m)	Key LED figures_Wave length	650 nm
Adjustment	Potentiometer, 270°	Items supplied	Stainless steel mounting bracket (1.4301/304) BEF-W100-A
Supply voltage UB	10 V DC ... 30 V DC	Ripple	± 10 %
Current consumption	30 mA	Protection class	III
Digital output_Type	NPN	Digital output_Switching mode	Light/dark switching
Digital output_Switching mode selector	Selectable via light/dark selector	Digital output_Signal voltage PNP HIGH/LOW	VS- (≤ 3 V) / approx. 0 V
Digital output_Output current Imax.	≤ 100 mA4)	Digital output_Response time	< 500 µs5)
Digital output_Switching frequency	1,000 Hz6)	Circuit protection	A7)#!#B8)#!#D9)
Housing	Rectangular	Dimensions (W x H x D)	12 mm x 31.5 mm x 21 mm
Connection	Cable, 3-wire, 2 m	Connection detail_Conductor size	0.14 mm²
Connection detail_Length of cable (L)	2 m1)	Material_Housing	Plastic, ABS/PC
Material_Front screen	Plastic, PMMA	Material_Cable	Plastic, PVC
Weight	170 g

Specifications may be subject to change without notice
