Product Model

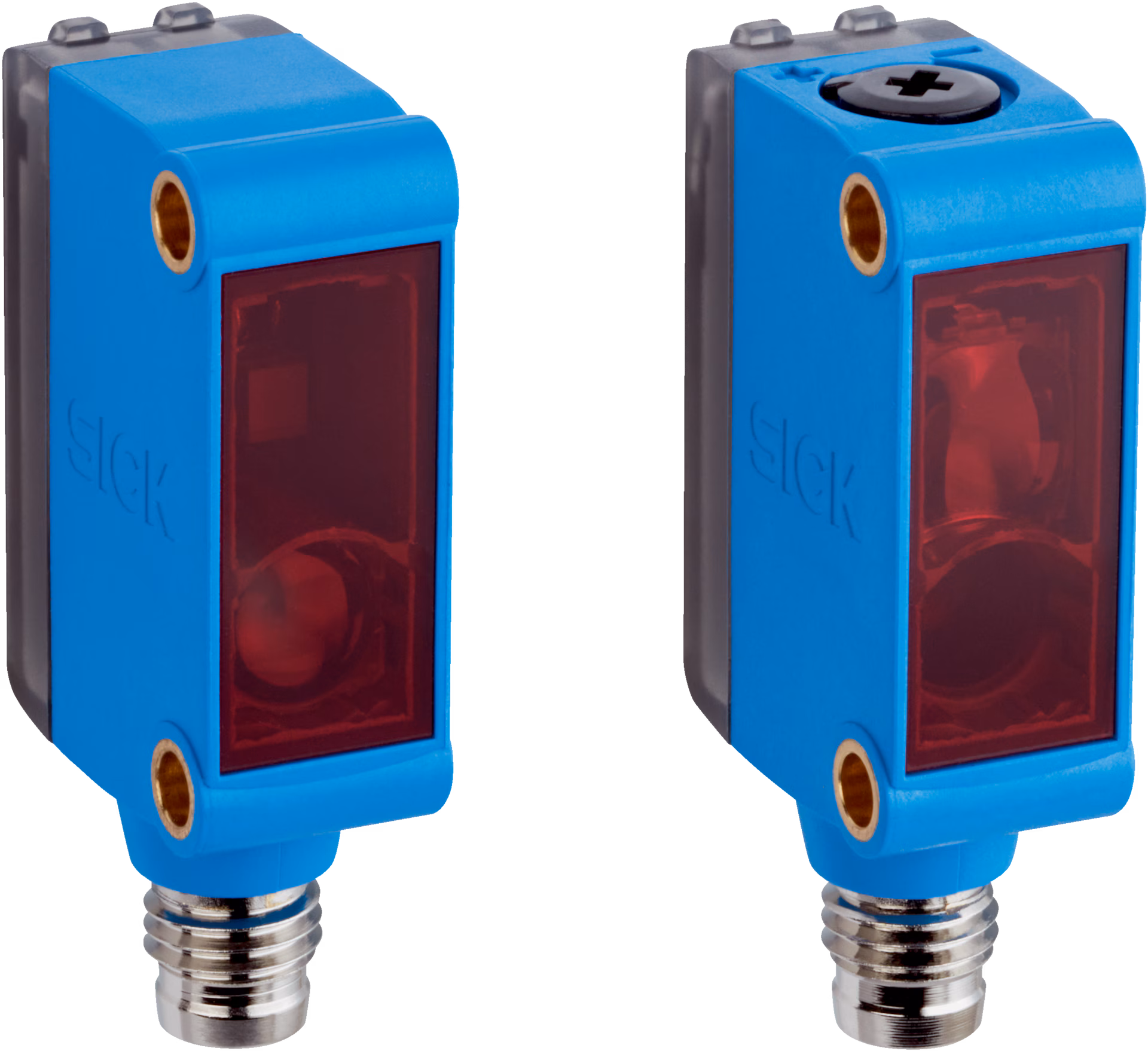

GSE6L-F4211
Key Features
- 1High Detection Range: Detect objects from 0 to 40 meters with precision.
- 2IP67 Rating: Durable and resistant to harsh environments with an IP67 rating.
- 3Fast Response Time: Responds in just 625 microseconds for quick and reliable operation.
- 4Versatile Output: Features PNP output type for easy integration into various systems.
- 5Compact Design: Compact rectangular housing made of ABS plastic for easy mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Through-beam photoelectric sensor | Sensing range_Sensing range min. | 0 m |
| Sensing range_Sensing range max. | 40 m | Sensing range_Recommended sensing range for the best performance | 0 m ... 30 m |
| Polarisation filters | No | Emitted beam_Light source | Laser |
| Emitted beam_Type of light | Visible red light | Emitted beam_Shape of light spot | Point-shaped |
| Emitted beam_Light spot size (distance) | Ø 3.5 mm (1,000 mm) | Emitted beam_Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) | < +/- 1.5° (at Ta = +23 °C) |
| Key laser figures_Normative reference | IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11 | Key laser figures_Laser class | 1 |
| Key laser figures_Wave length | 680 nm | Key laser figures_Pulse duration | 3 µs |
| Key laser figures_Maximum pulse power | ≤ 7.8 mW | Key laser figures_Average service life | 100,000 h at Ta= +25 °C |
| Smallest detectable object (MDO) typ. | 3.5 mm (at 1 m distance (object with 90% remission factor (corresponds to standard white according to DIN 5033))) | Adjustment_Potentiometer | For setting the sensing range |
| Adjustment_Operating mode switch | For inverting the switching function (light/dark switching) | Indication_LED green | Operating indicatorStatic on: power on |
| Indication_LED yellow | Status of received light beamStatic on: object presentStatic off: object not present | Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 V | Usage category | DC-13 (According to EN 60947-5-2) |
| Current consumption | ≤ 20 mA, without load. At U#!#= 24 V | Protection class | III |
| Digital output_Number | 2 (Complementary) | Digital output_Type | PNP |
| Digital output_Switching mode | Light/dark switching | Digital output_Signal voltage NPN HIGH/LOW | Approx. UB/ ≤ 3 V |
| Digital output_Output current Imax. | ≤ 100 mA2) | Digital output_Circuit protection outputs | Reverse polarity protected |
| Digital output | Overcurrent protected | Digital output | Short-circuit protected |
| Digital output_Response time | ≤ 625 µs | Digital output_Switching frequency | 1,000 Hz3) |
| Pin/Wire assignment_Function of pin 4/black (BK) | Digital output, light switching, object present → output Q LOW | Pin/Wire assignment_Function of pin 4/black (BK) – detail | The pin 4 function of the sensor can be switched, Additional possible settings via operating mode switch |
| Pin/Wire assignment_Function of pin 2/white (WH) | Digital output, dark switching, object present → output Ǭ HIGH | Pin/Wire assignment_Function of pin 2/white (WH) – detail | The pin 2 function of the sensor can be switched, Additional possible settings via operating mode switch |
| Housing | Rectangular | Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Male connector M8, 4-pin | Material_Housing | Plastic, ABS |
| Material_Front screen | Plastic, PMMA | Material_Cable | Plastic, PVC |
| Material_Male connector | Copper alloy (C3604 CUZN39PB3) | Weight | Approx. 60 g |
Specifications may be subject to change without notice
