Product Model

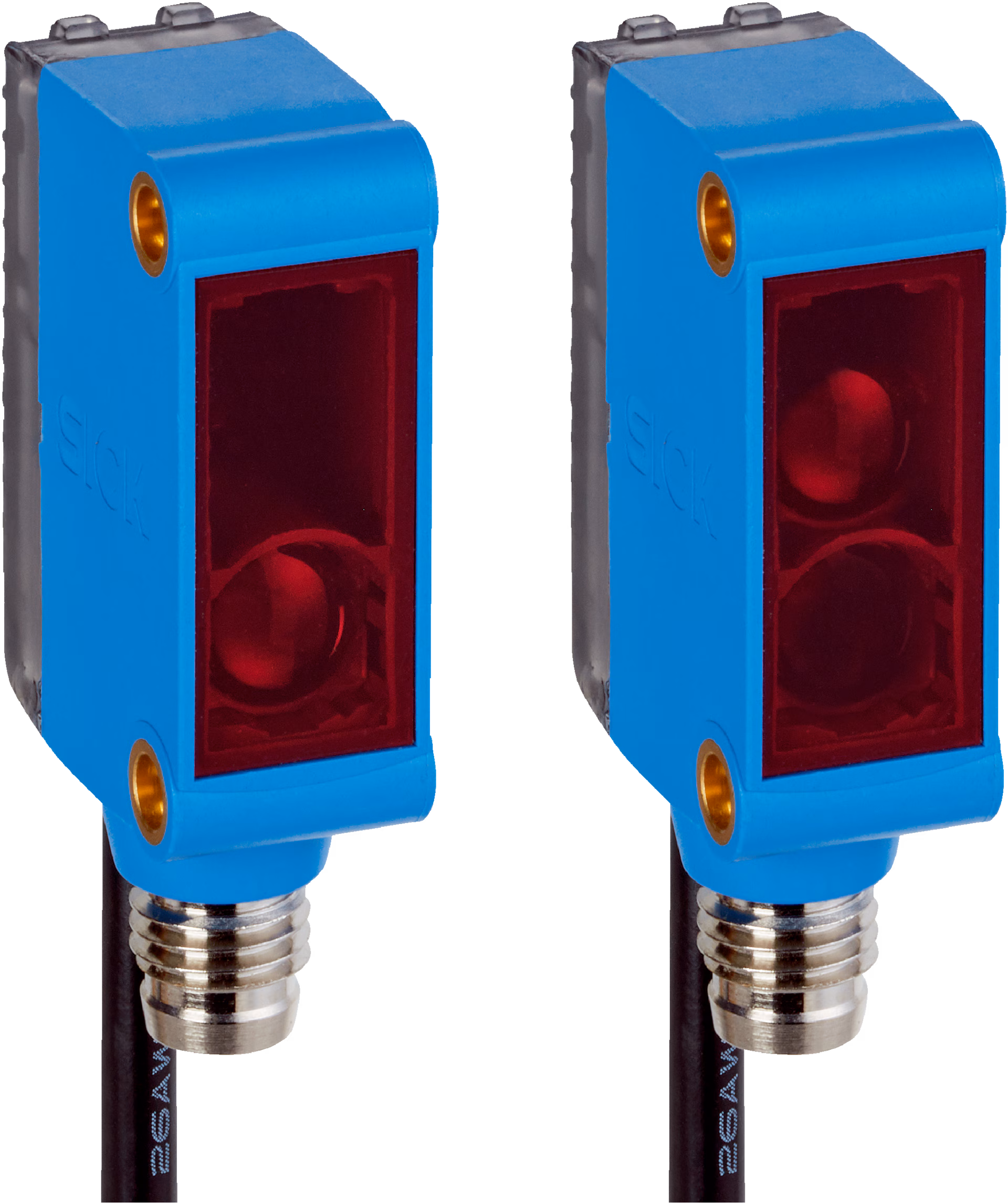

GSE6-CC021K00
Key Features
- 1High precision photoelectric sensing technology
- 2Reliable operation in harsh industrial conditions
- 3Compact design for easy integration
- 4Fast response time for precise control
- 5Durable construction with long service life
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Device version | FlexChain Guest | Sensor principle | Sender/receiver#!#Light grid system |
| Light source | PinPoint LED, Infrared light | Light spot size (distance) | Ø 375 mm (12 m) |
| Wave length | 850 nm | Supply voltage Vs | 12 V, via FlexChain (host) |
| Adjustment | Cable (Sensitivity)#!#Via FlexChain (host) | Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection type | Male connector M8, 4-pin, Cable with female connector, M8, 4-pin, 0.15 m | Housing material | Plastic (ABS) |
| Enclosure rating | IP65, IP67 | Protection class | III |
| Weight | Approx. 23 g | Operating range | 15 m |
Specifications may be subject to change without notice
