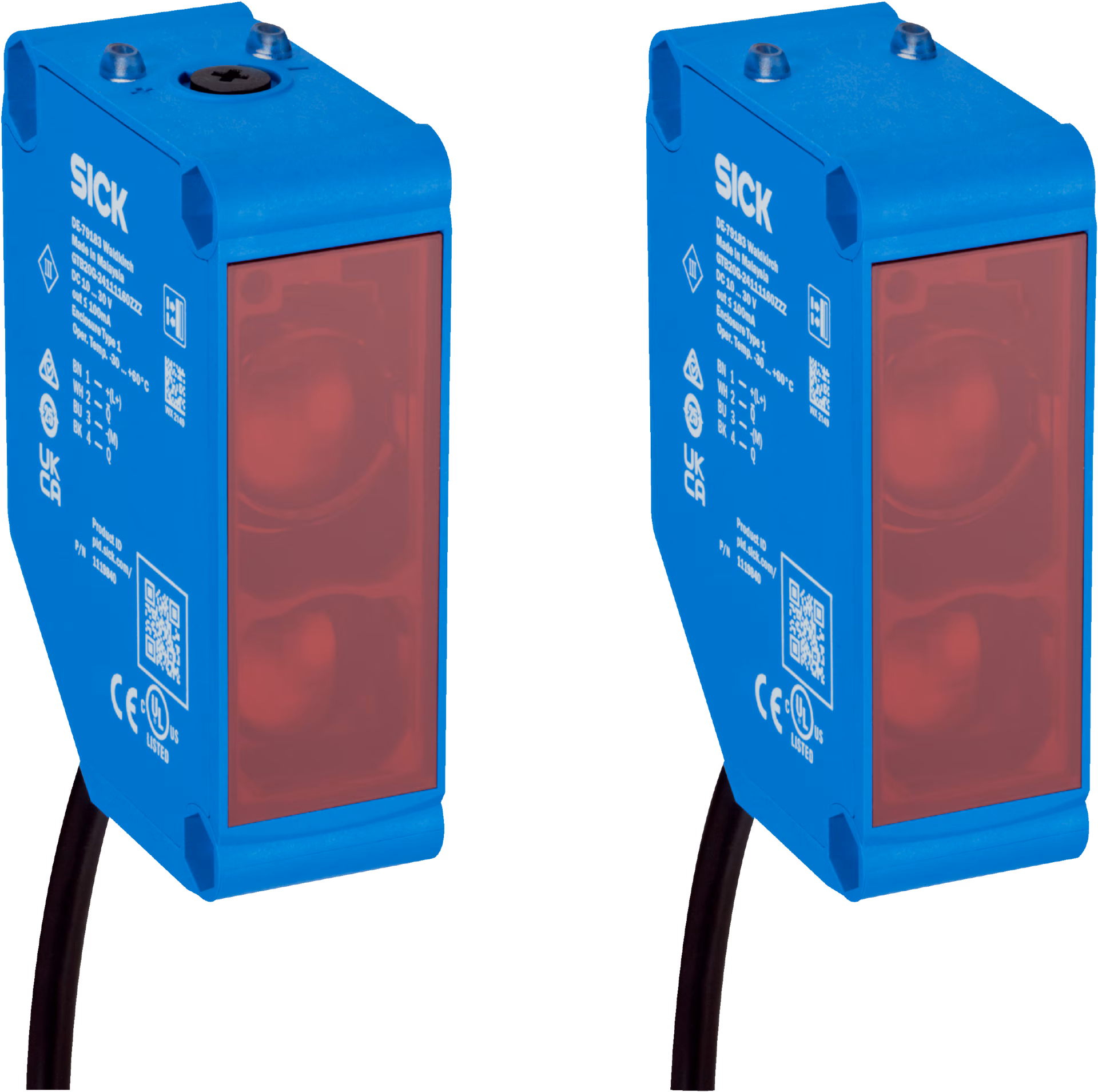

Product Model
GSE20G-1H112170ZZZ
Key Features
- 1Detects objects from 0 to 120 meters with high accuracy.
- 2Rectangular housing with dimensions 23.5 mm x 74.5 mm x 23.5 mm.
- 3Uses visible red light with a rectangular light spot size.
- 4Potentiometer for sensitivity adjustment over 270°.
- 5IP67 rated, resistant to ambient light, shock, and vibration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Through-beam photoelectric sensor | Sensing range_Sensing range min. | 0 m |
| Sensing range_Sensing range max. | 120 m | Sensing range_Maximum distance range from receiver to sender (operating reserve 1) | 0 m ... 120 m |
| Sensing range_Recommended distance range from receiver to sender (operating reserve 2) | 0 m ... 85 m | Emitted beam_Light source | LED |
| Emitted beam_Type of light | Visible red light | Emitted beam_Shape of light spot | Rectangular |
| Emitted beam_Light spot size (distance) | Ø 800 mm (20,000 mm) | Emitted beam_Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) | < +/- 1.5° (at Ta = +23 °C) |
| Key LED figures_Normative reference | EN 62471:2008-09 | IEC 62471:2006, modified | Key LED figures_LED risk group marking | Free group |
| Key LED figures_Wave length | 630 nm | Key LED figures_Average service life | 100,000 h at Ta= +25 °C |
| Adjustment_Potentiometer | For sensitivity adjustment, 270° | Indication_LED green | Operating indicatorStatic on: power onStatic off: object present |
| Indication_LED yellow | Status of received light beamStatic on: object not presentStatic off: object present | Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 V | Usage category | DC-13 (according to EN 60947-1) |
| Current consumption | ≤ 30 mA, without load. At U#!#= 24 V | Protection class | III |
| Digital output_Number | 2 (Complementary) | Digital output_Type | Push-pull: PNP/NPN |
| Digital output_Switching mode | Light/dark switching | Digital output_Signal voltage PNP HIGH/LOW | VS- (≤ 3 V) / approx. 0 V |
| Digital output_Signal voltage NPN HIGH/LOW | VS- (≤ 3 V) / approx. 0 V | Digital output_Output current Imax. | ≤ 100 mA2) |
| Digital output_Circuit protection outputs | Reverse polarity protected | Digital output | Overcurrent protected |
| Digital output | Short-circuit protected | Digital output_Response time | ≤ 500 µs |
| Digital output_Switching frequency | 1,000 Hz3) | Pin/Wire assignment, sender_BN | + (L+) |
| Pin/Wire assignment, sender_WH | - | Pin/Wire assignment, sender_BU | - (M) |
| Pin/Wire assignment, sender_BK | Test -> MInput, sender off, LOW active | Pin/Wire assignment, receiver_BN | + (L+) |
| Pin/Wire assignment, receiver_WH | ǬDigital output, dark switching, object present → output Ǭ HIGHThe pin 2 function of the sensor can be switched | Pin/Wire assignment, receiver_BU | - (M) |
| Pin/Wire assignment, receiver_BK | QDigital output, light switching, object present → output Q LOWThe pin 4 function of the sensor can be switched | Housing | Rectangular |
| Dimensions (W x H x D) | 23.5 mm x 74.5 mm x 52.5 mm | Connection | Cable, 4-wire, 2 m |
| Connection detail_Deep-freeze property | Do not bend below 0 °C | Connection detail_Conductor size | 0.14 mm² |
| Connection detail_Cable diameter | Ø 5 mm | Connection detail_Length of cable (L) | 2 m |
| Material_Housing | Plastic, ABS | Material_Front screen | Plastic, PMMA |
| Material_Cable | Plastic, PVC | Weight | Approx. 235 g |
Specifications may be subject to change without notice
