Product Model

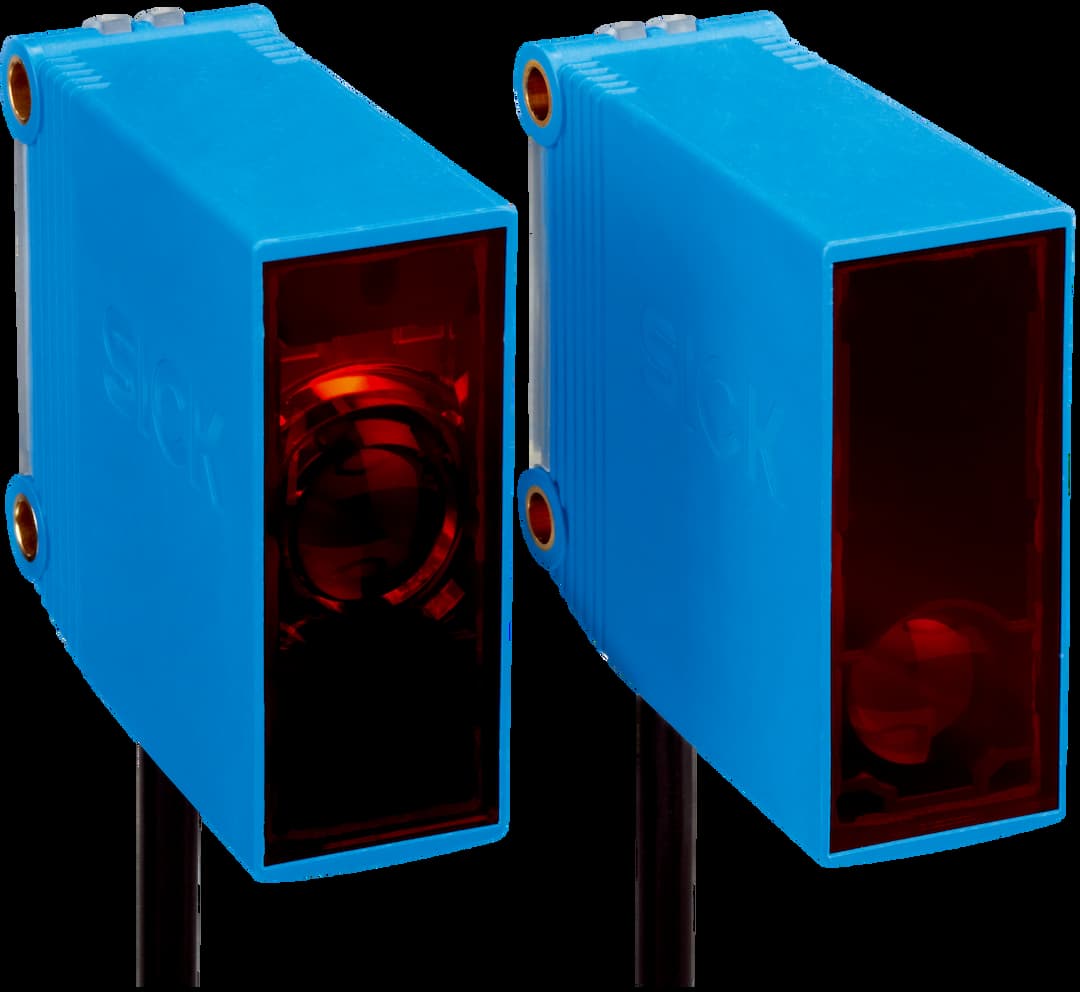

GSE10-R3711

Manufacturer

sick

Key Features

1High Precision Sensing: Detects distances up to 40 meters with visible red light.
2Reliable Performance: Ensures consistent operation with an average service life of 100,000 hours.
3Versatile Applications: Suitable for various industrial automation tasks, including through-beam sensing.
4Compact Design: Measures 20 mm x 50 mm x 51.5 mm, making it easy to integrate into systems.
5Compliant with Standards: Meets UL325 standard when used with a sturdy protection hood.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Functional principle	Through-beam photoelectric sensor	Dimensions (W x H x D)	20 mm x 50 mm x 51.5 mm
Housing design (light emission)	Rectangular	Sensing range max.	0 m ... 40 m
Sensing range	0 m ... 35 m	Type of light	Visible red light
Light source	PinPoint LED	Light spot size (distance)	Ø 180 mm (15 m)
Wave length	625 nm	Adjustment	None
Supply voltage UB	24 V AC/DC ... 240 V AC/DC	Ripple	< 5 V
Power consumption, sender	≤ 2 VA	Power consumption, receiver	≤ 2.5 VA
Switching output	Relay, SPDT, electrically isolated	Switching load max. (current/voltage)	0.11 A (250 V DC)#!#3 A (30 V DC)#!#3 A (250 V AC)
Response time	≤ 10 ms	Switching frequency	20 Hz
Connection type	Cable, 5-wire, 2 m	Cable material	Plastic, PVC
Conductor cross section	0.25 mm²	Circuit protection	C
Protection class	II	Weight	230 g
Interference emission	EN 61000-6-3 (2011-09)	Housing material	Plastic, ABS/PMMA
Enclosure rating	IP67	Relay switching cycles min.	100.000 cycles (3 A)
Electromagnetic compatibility (EMC)	EN 60947-5-2#!#EN 61000-6-3 (2011-09)	Ambient operating temperature	–30 °C ... +60 °C
Ambient temperature, storage	–40 °C ... +70 °C	UL File No.	NRKH.E348498 & NRKH7.E348498
More standards	UL325

Specifications may be subject to change without notice
