Product Model

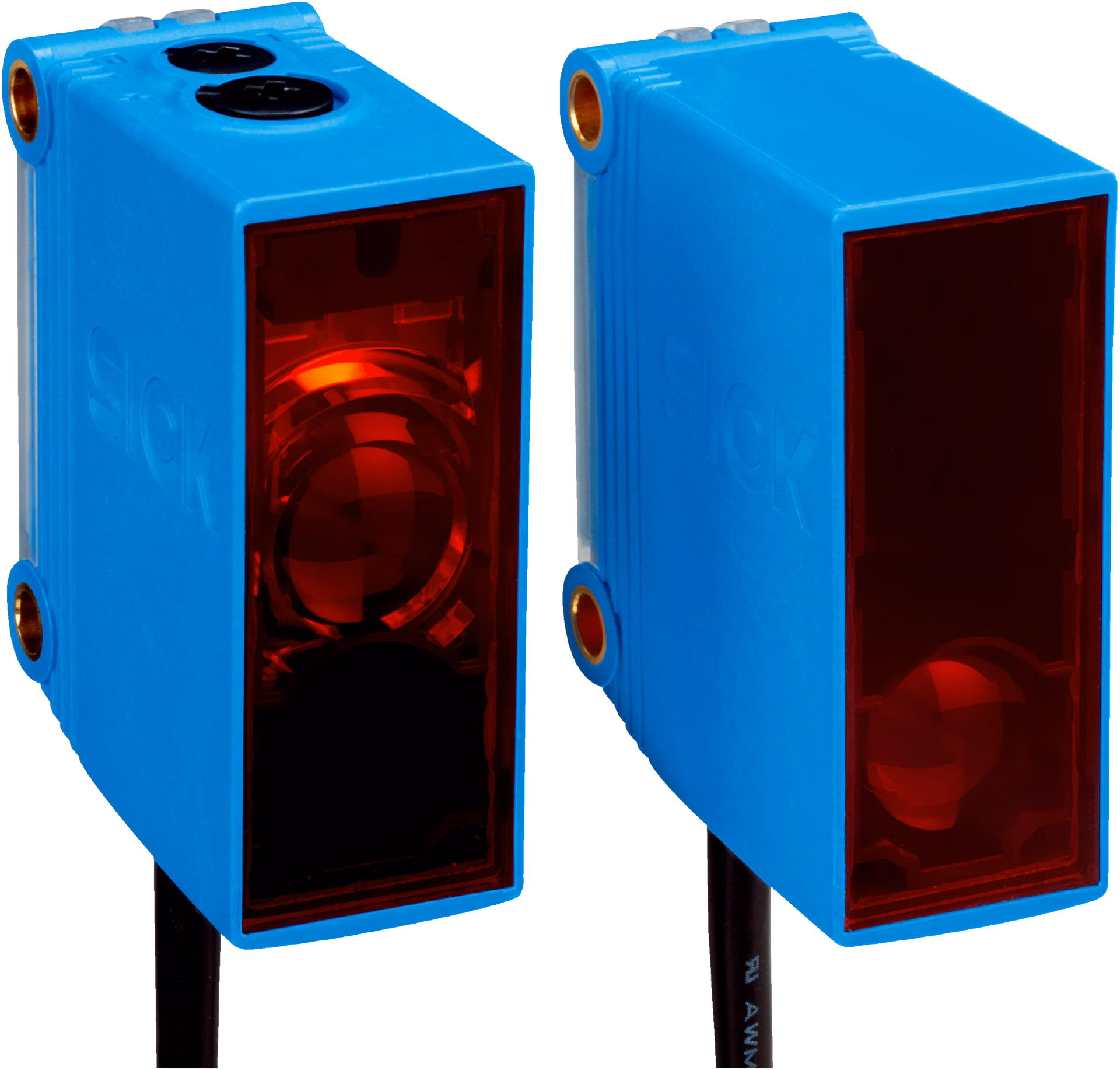

GSE10-N1222
Key Features
- 1Up to 40 meters for precise detection in various environments.
- 2Small housing for easy integration into tight spaces.
- 3Supports different optics, including PinPoint red light and infrared light.
- 4Compatible with DC (10-30 V) and AC/DC (24-240 V) power supplies.
- 5Patented Q-Lock assembly system for fast and error-free mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Through-beam photoelectric sensor | Dimensions (W x H x D) | 20 mm x 50 mm x 39 mm |
| Housing design (light emission) | Rectangular | Sensing range max. | 0 m ... 40 m |
| Sensing range | 0 m ... 35 m | Type of light | Infrared light |
| Light source | LED | Light spot size (distance) | Ø 433 mm (15 m) |
| Wave length | 850 nm | Adjustment | Potentiometer, 270° |
| Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
| Power consumption, sender | ≤ 15 mA | Power consumption, receiver | ≤ 20 mA |
| Switching output | NPN | Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector | Output current Imax. | ≤ 100 mA |
| Response time | ≤ 500 µs | Switching frequency | 1,000 Hz |
| Connection type | Cable, 3-wire, 2 m | Cable material | Plastic, PVC |
| Conductor cross section | 0.14 mm² | Circuit protection | A6)#!#B7)#!#C8)#!#D9) |
| Protection class | III | Weight | 180 g |
| Housing material | Plastic, ABS/PMMA | Enclosure rating | IP67 |
| Items supplied | Mounting bracket BEF-G10DC01 (2x) | Electromagnetic compatibility (EMC) | EN 60947-5-2 |
| Test input | Sender OFF at "Test" 0 V | Ambient operating temperature | –30 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +70 °C | UL File No. | NRKH.E348498 & NRKH7.E348498 |
| More standards | UL325 |
Specifications may be subject to change without notice
