Product Model

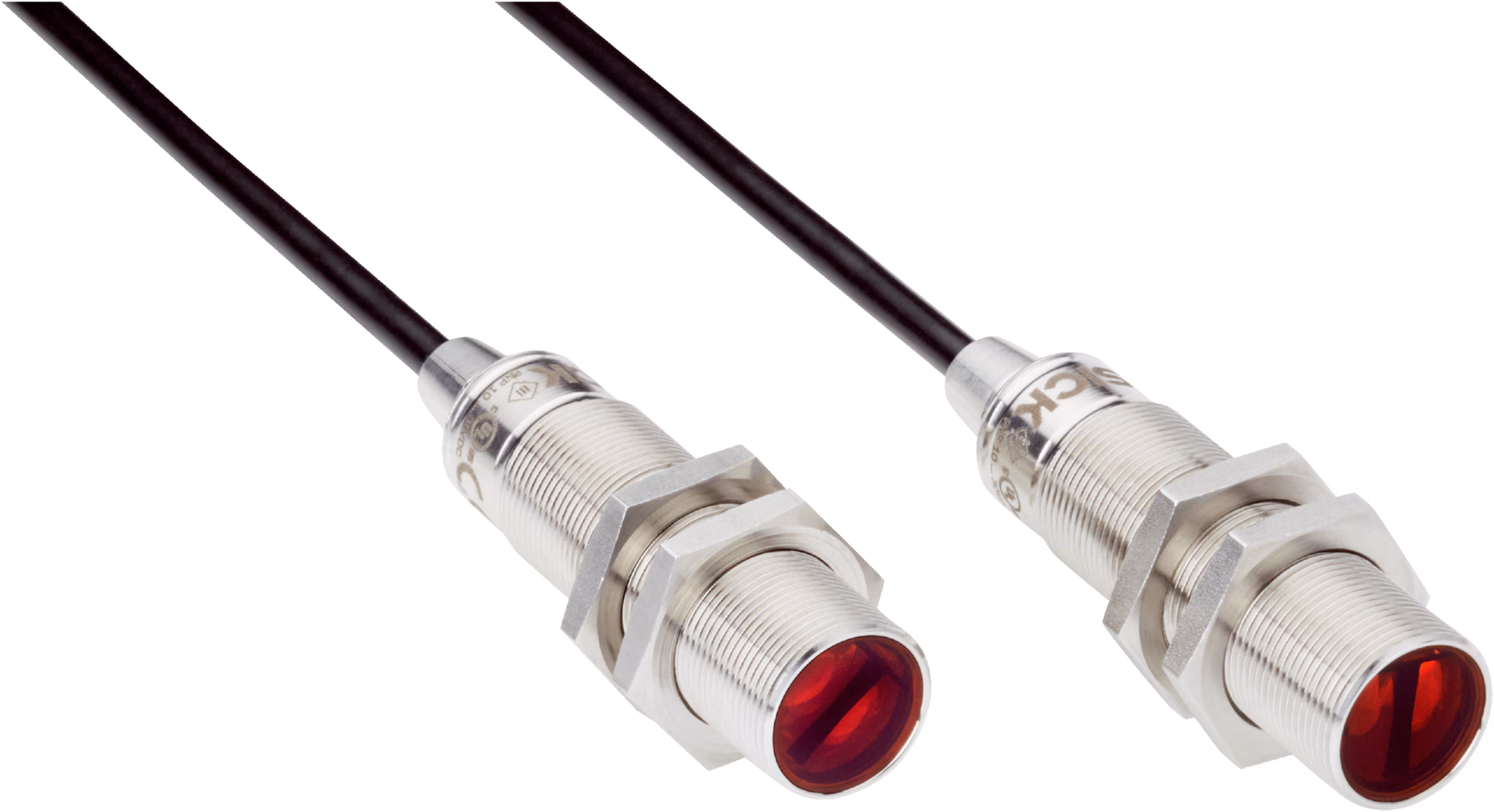

GRSE18-P1121V
Key Features
- 1Through-beam photoelectric sensor with high accuracy.
- 2Detects objects from 0 mm to 15,000 mm.
- 3Rugged and reliable operation with IP67 enclosure rating.
- 4Easy mounting options with M18 hole mounting.
- 5Suitable for various industrial applications, including logistics and manufacturing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Through-beam photoelectric sensor | Dimensions (W x H x D) | 18 mm x 18 mm x 73.5 mm |
| Housing design (light emission) | Cylindrical | Housing length | 73.5 mm |
| Thread length | 49.3 mm | Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial | Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m | Type of light | Infrared light |
| Light source | LED | Light spot size (distance) | Ø 420 mm (10 m) |
| Wave length | 850 nm | Adjustment | None |
| Indication_LED green | Operating indicatorStatic on: power on | Indication_LED yellow | Status of received light beamStatic on: object not presentStatic off: object present |
| Special applications | Hygienic and washdown zones | Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 V | Current consumption | 30 mA |
| Switching output | PNP | Output function | Complementary |
| Switching mode | Light/dark switching | Signal voltage PNP HIGH/LOW | V#!#- (≤ 3 V) / approx. 0 V |
| Output current Imax. | ≤ 100 mA | Response time | < 500 µs |
| Switching frequency | 1,000 Hz | Connection type | Cable, 4-wire, 2 m |
| Cable material | Plastic, PVC | Conductor cross section | 0.14 mm² |
| Cable diameter | Ø 4.8 mm | Circuit protection | A8)#!#B9)#!#D10) |
| Protection class | III | Weight | 190 g |
| Housing material | Stainless steel, Stainless steel V4A (1.4404, 316L) | Optics material | Plastic, PMMA |
| Tightening torque, max. | 90 Nm | Enclosure rating | IP67#!#IP6811)#!#IP69K12) |
| Items supplied | Fastening nuts (4 x) | Electromagnetic compatibility (EMC) | EN 60947-5-2 |
| Test input | Sender OFF at "Test" 0 V | Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –30 °C ... +75 °C | UL File No. | E348498 |
| Part number of individual components | 2091363 GRS18-D1121V 2091364 GRE18-P1111V |
Specifications may be subject to change without notice
