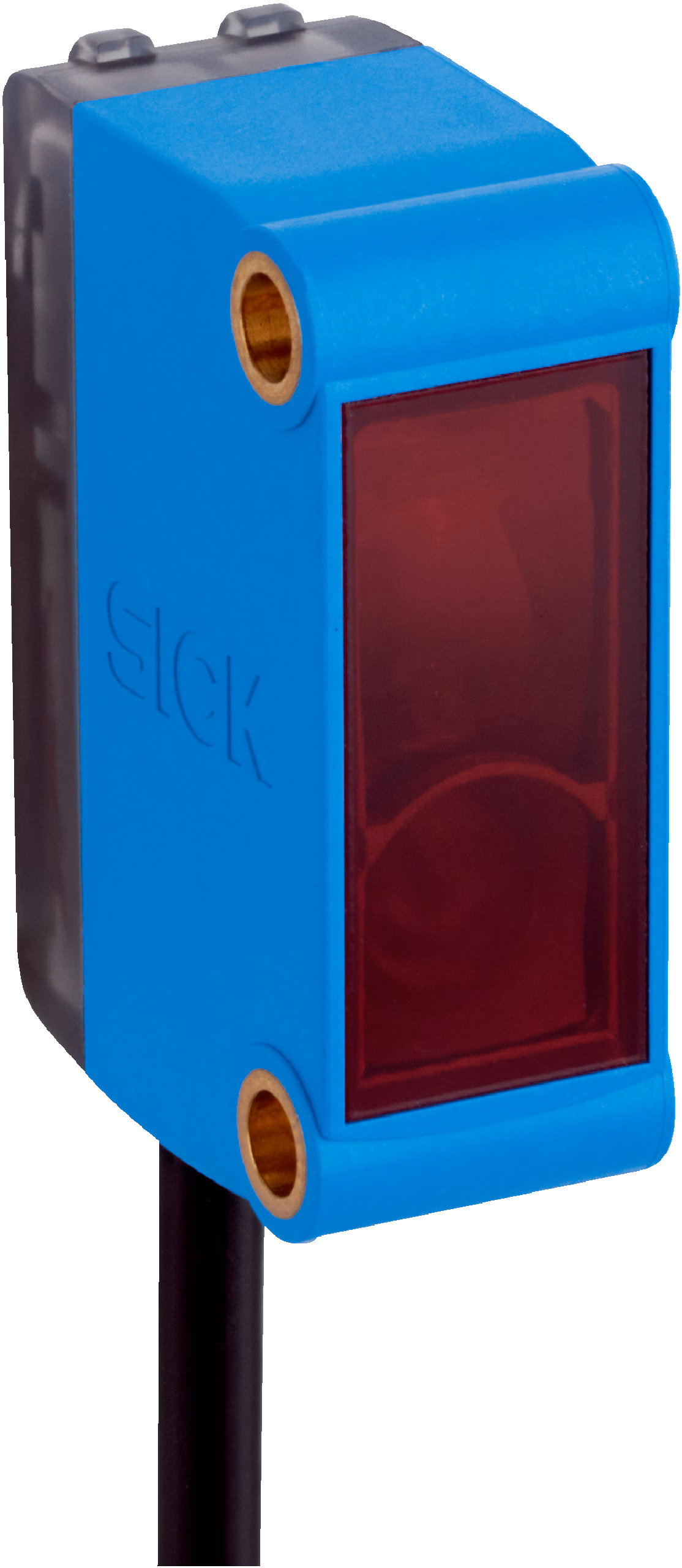

Product Model
GL6-P0511P20
Key Features
- 1High Detection Range: Detects objects up to 6 meters with precision.
- 2Durable Design: IP67 rated for harsh environments and resistant to chemicals.
- 3User-Friendly Adjustment: Easy alignment with PinPoint LED and user-friendly adjustment screws.
- 4Reliable Performance: Utilizes latest ASIC technology from SICK for optimal performance.
- 5Versatile Mounting: Secure mounting with metal inserts and M3 threaded holes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Photoelectric retro-reflective sensor | Functional principle detail | With minimum distance to reflector (dual lens system) |
| Sensing range max. | 0.03 m ... 6 m | Sensing range | 0.07 m ... 5 m |
| Polarisation filters | Yes | Emitted beam_Light source | PinPoint LED2) |
| Emitted beam_Type of light | Visible red light | Emitted beam_Light spot size (distance) | Ø 8 mm (350 mm) |
| Key LED figures_Wave length | 650 nm | Adjustment | None |
| Special features | Package with 100 x GL6-P0511S56 (1073104) | Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % | Current consumption | 30 mA |
| Protection class | III | Digital output_Type | PNP |
| Digital output_Switching mode | Light switching | Digital output_Signal voltage PNP HIGH/LOW | VS- (≤ 3 V) / approx. 0 V |
| Digital output_Output current Imax. | ≤ 100 mA4) | Digital output_Response time | < 625 µs5) |
| Digital output_Switching frequency | 1,000 Hz6) | Circuit protection | A7)#!#B8)#!#D9) |
| Housing | Rectangular | Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable with connector, JST, 3-pin | Connection detail_Conductor size | 0.14 mm² |
| Connection detail_Length of cable (L) | 600 mm1) | Material_Housing | Plastic, ABS/PC |
| Material_Front screen | Plastic, PMMA | Material_Cable | Plastic, PUR |
| Weight | 20 g |
Specifications may be subject to change without notice
