Product Model

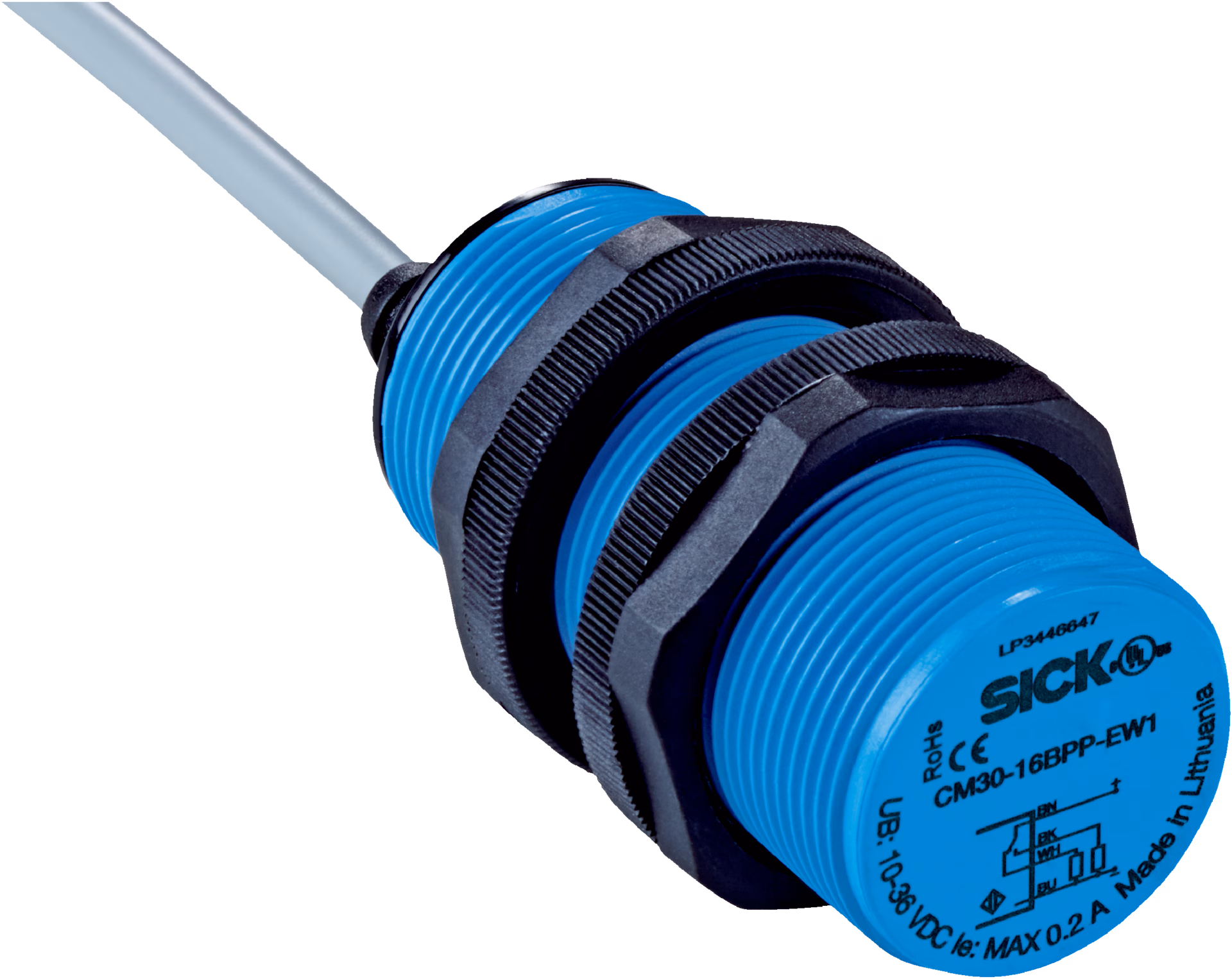

CM30-16BAP-KW1
Key Features
- 1Reliable Detection: Detect objects at a long sensing distance up to 16 mm with high accuracy.
- 2Adjustable Sensing Range: Easily adjust the sensing range from 2 to 16 mm using the potentiometer.
- 3High EMC Immunity: Prevent false switching and reduce material loss with best-in-class electromagnetic compatibility.
- 4IP67 Enclosure Rating: Ensure durability in harsh environments with an IP67 rated enclosure.
- 5Easy Installation: Quick and easy installation with a flush mounting type and 2-wire AC connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing | Metric | Thread size | M30 x 1.5 |
| Diameter | Ø 30 mm | Sensing range Sn | 2 mm ... 16 mm |
| Safe sensing range Sa | 11.52 mm | Installation type | Flush |
| Switching frequency | 10 Hz | Connection type | Cable, 2-wire, 2 m |
| Output function | NC or NO | Electrical wiring | AC 2-wire |
| Adjustment_Potentiometer | Sensitivity (11 turns) | Enclosure rating | IP67 (According to EN 60529) |
| Items supplied | Mounting nut, PA12 plastic (2x)#!#Screwdriver for potentiometer adjustment (1 x) | Supply voltage | 20 V AC ... 250 V AC |
| Ripple | ≤ 10 % | Voltage drop | ≤ 10 V DC |
| Current consumption | 10 mA | Time delay before availability | ≤ 100 ms |
| Hysteresis | 4 % ... 20 % | Reproducibility | ≤ 5 % |
| Temperature drift (of Sr) | ± 10 % | EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 500 mA | Cable material | PVC |
| Conductor size | 0.5 mm² | Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | Ambient operating temperature | –25 °C ... +80 °C |
| Housing material | Plastic, PBT | Housing length | 63.6 mm |
| Thread length | 50 mm | Tightening torque, max. | ≤ 7.5 Nm |
| Note | The values are reference values which may vary | Metal | 1 |
| Water | 1 | PVC | Approx. 0.4 |
| Oil | Approx. 0.25 | Glass | 0.6 |
| Ceramics | 0.5 | Alcohol | 0.7 |
| Wood | 0.2 ... 0.7 | Remark | Associated graphic see "Installation" |
| B | 30 mm | C | 30 mm |
| D | 48 mm |
Specifications may be subject to change without notice
