Product Model

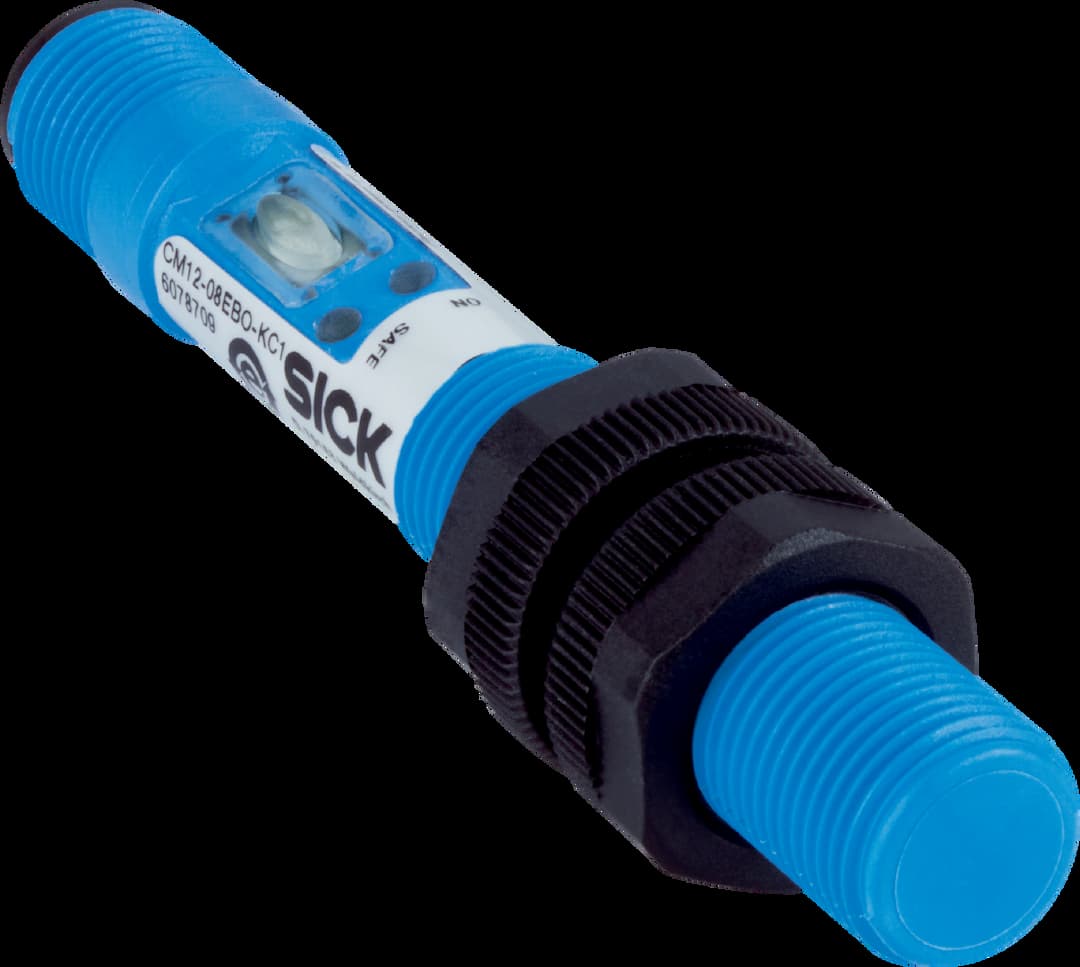

CM12-08EBO-KC1
Key Features
- 1High Accuracy & Reliability: The CM12-08EBO-KC1 ensures precise detection with a sensing range of 0.5 mm to 8 mm and a safe sensing range of 5.76 mm.
- 2Robust Industrial Design: Built with IP68-rated plastic housing, this sensor withstands harsh environments and operates from -20°C to +85°C.
- 3Programmable Output: Features programmable output function with factory setting as normally closed, allowing for customizable switching properties.
- 4Wide Voltage Compatibility: Operates on a wide voltage range of 10 V DC to 36 V DC with a residual ripple of ≤10%.
- 5EMC Compliant & Shock Resistant: Meets EN 60947-5-2 EMC standards and is resistant to shock and vibration up to 30 g at 11 ms/10-55 Hz.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing | Metric | Thread size | M12 x 1 |
| Diameter | Ø 12 mm | Sensing range Sn | 0.5 mm ... 8 mm1)#!#0.5 mm ... 4 mm2) |
| Safe sensing range Sa | 5.76 mm | Installation type | Non-flush / flush |
| Switching frequency | 15 Hz | Connection type | Male connector M12, 4-pin |
| Switching output | PNP / NPN | Output function | Programmable (factory setting: normally closed) |
| Output characteristic | Wire configurable | Electrical wiring | DC 4-wire |
| Adjustment_Teach-in button | Sensitivity | Adjustment_Wire/pin | Sensitivity |
| Enclosure rating | IP68 (According to EN 60529) | Items supplied | Mounting nut, PA12 plastic (2x) |
| Supply voltage | 10 V DC ... 36 V DC | Ripple | ≤ 10 % |
| Voltage drop | ≤ 2.5 V DC | Current consumption | 12 mA |
| Time delay before availability | ≤ 120 ms | Hysteresis | 3 % ... 20 % |
| Reproducibility | ≤ 5 % | EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA | Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ | Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –20 °C ... +85 °C | Ambient temperature, storage | –40 °C ... +85 °C |
| Housing material | Plastic | Housing length | 84.7 mm |
| Thread length | 46.5 mm | Tightening torque, max. | ≤ 1 Nm |
| UL File No. | NRKH.E191603 | Note | The values are reference values which may vary |
| Metal | 1 | Water | 1 |
| PVC | Approx. 0.4 | Oil | Approx. 0.25 |
| Glass | 0.6 | Ceramics | 0.5 |
| Alcohol | 0.7 | Wood | 0.2 ... 0.7 |
| Remark | Associated graphic see "Installation" | A | 8 mm |
| B | 12 mm | C | 12 mm |
| D | 12 mm | E | 8 mm |
| F | 6 x S#!#(max. 48 mm) |
Specifications may be subject to change without notice
