Product Model

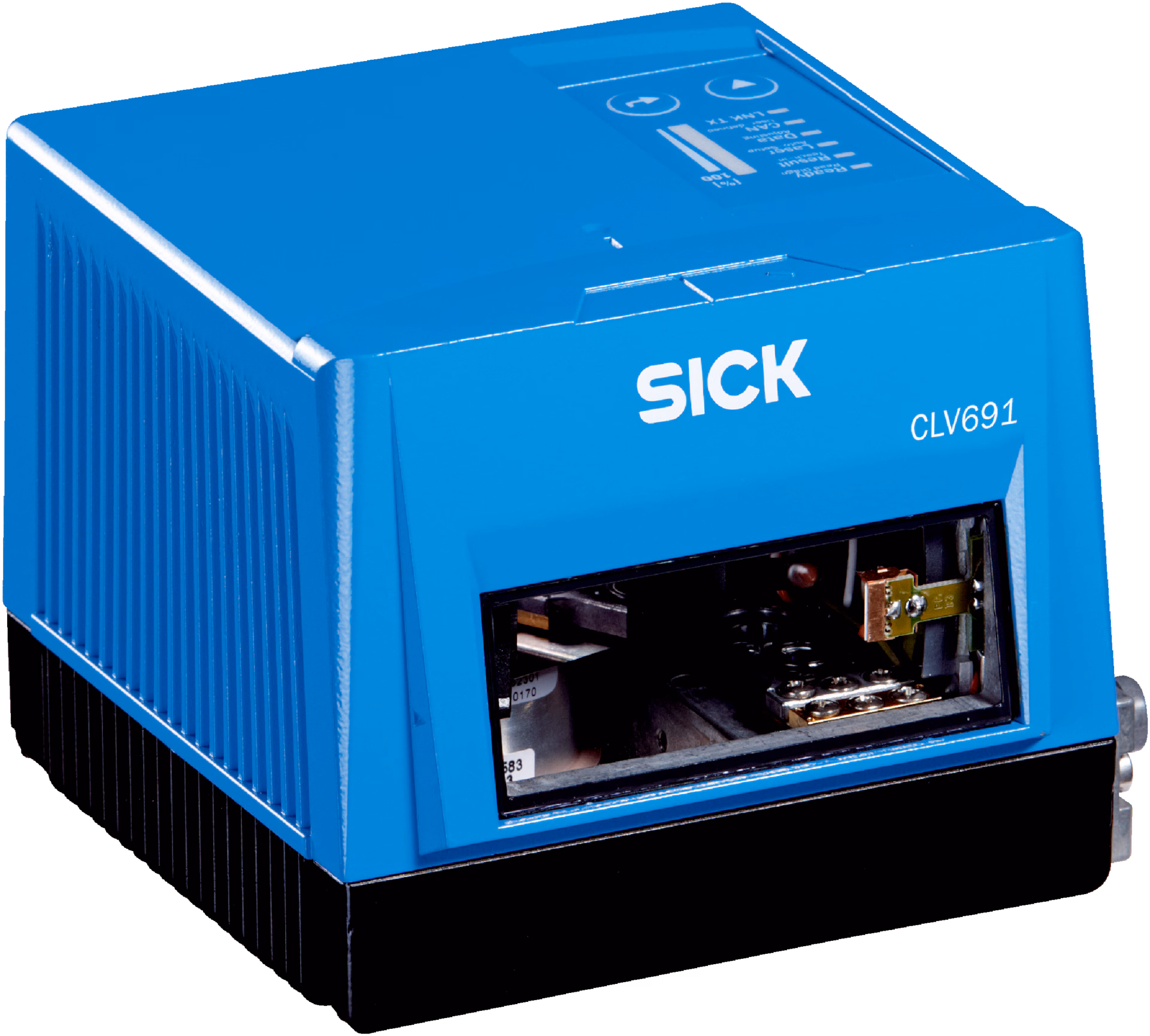

CLV691-0001
Key Features
- 1The CLV691-0001 features auto focus technology for height-independent code reading within the reading field.
- 2Equipped with the SMART+ algorithm, it can read heavily contaminated or partially damaged barcodes with high accuracy.
- 3Offers a higher reading rate on damaged, heavily contaminated, and partially damaged barcodes.
- 4Designed with an IP65 enclosure rating, ensuring durability in harsh environments.
- 5Supports multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Version | Low Density | Connection type | Depending on the cloning plug used |
| Reading field | Front | Sensor type | Line scanner |
| Optical focus | Auto focus (alternative: dynamic focus control) | No. of distance configurations | ≤ 8 |
| Focus adjustment time | ≤ 20 ms | Focus trigger source | Data interface / Digital inputs |
| Light source | Light spot, laser, Visible, Red, 660 nm | Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) |
| Aperture angle | ≤ 60° | Reading distance | 500 mm ... 2,200 mm |
| Scanning frequency | 400 Hz ... 1,200 Hz | Code resolution | 0.35 mm ... 1.2 mm |
| Heating | ✔ | Front screen heating | ✔ |
| Cold storage applications | ✔ | Connection type | Depending on the cloning plug used |
| Supply voltage | 21.6 V DC ... 28.8 V DC | Power consumption | 78 W |
| Housing material | Aluminum die cast | Housing color | Light blue (RAL 5012) |
| Window material | Glass | Enclosure rating | IP65 (EN 60529/A1 (2002-02)) |
| Weight | + 1,500 g | Dimensions (L x W x H) | 117 mm x 117 mm x 94 mm |
| MTBF | 100,000 h | MTTF | 40,000 h (Laser diode) |
| Readable code structures | 1D codes | Bar code types | Interleaved 2 of 5, all current code types, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN |
| Code printing process | Label (printed codes) | Print ratio | 2:1 ... 3:1 |
| No. of codes per scan | 1 ... 20 (Standard decoder)#!#1 ... 6 (SMART decoder) | No. of codes per reading interval | 1 ... 50 (auto-discriminating) |
| No. of characters per reading interval | 5,000 | No. of multiple readings | 1 ... 100 |
| Ethernet_Remark | Only with cloning plug I/O, CAN IN/OUT or CAN Redundant | Ethernet_Function | Data interface (read result output), Service interface |
| Ethernet_Data transmission rate | 10/100 MBit/s | PROFINET_Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| PROFINET_Remark | Only with cloning plug I/O, CAN IN/OUT or CAN Redundant | PROFINET_Function | PROFINET Single Port, PROFINET Dual Port |
| EtherNet/IP™_Remark | Only with cloning plug I/O, CAN IN/OUT or CAN Redundant | EtherNet/IP™_Data transmission rate | 10/100 MBit/s |
| Serial_Remark | Only with cloning plug D-Sub and Ethernet | Serial_Function | Data interface (read result output), AUX (only RS-232) |
| Serial_Data transmission rate | 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232) | CAN_Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
| CAN_Data transmission rate | 20 kbit/s ... 1 Mbit/s | PROFIBUS DP_Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Digital inputs | 6 (“Sensor 1” ... “Sensor 6”) | Digital outputs | 4 (“Result 1” ... “Result 4”) |
| Reading pulse | Digital inputs, serial interface, auto pulse, CAN | Optical indicators | 6 LEDs (Ready, Result, laser, Data, CAN, LNK TX, Bar graph for displaying the reading rate percentage (10 LEDs)) |
| Control elements | 2 buttons | Parameter storage | Integrated in cloning plug |
| Configuration software | SOPAS ET |
Specifications may be subject to change without notice
