Product Model

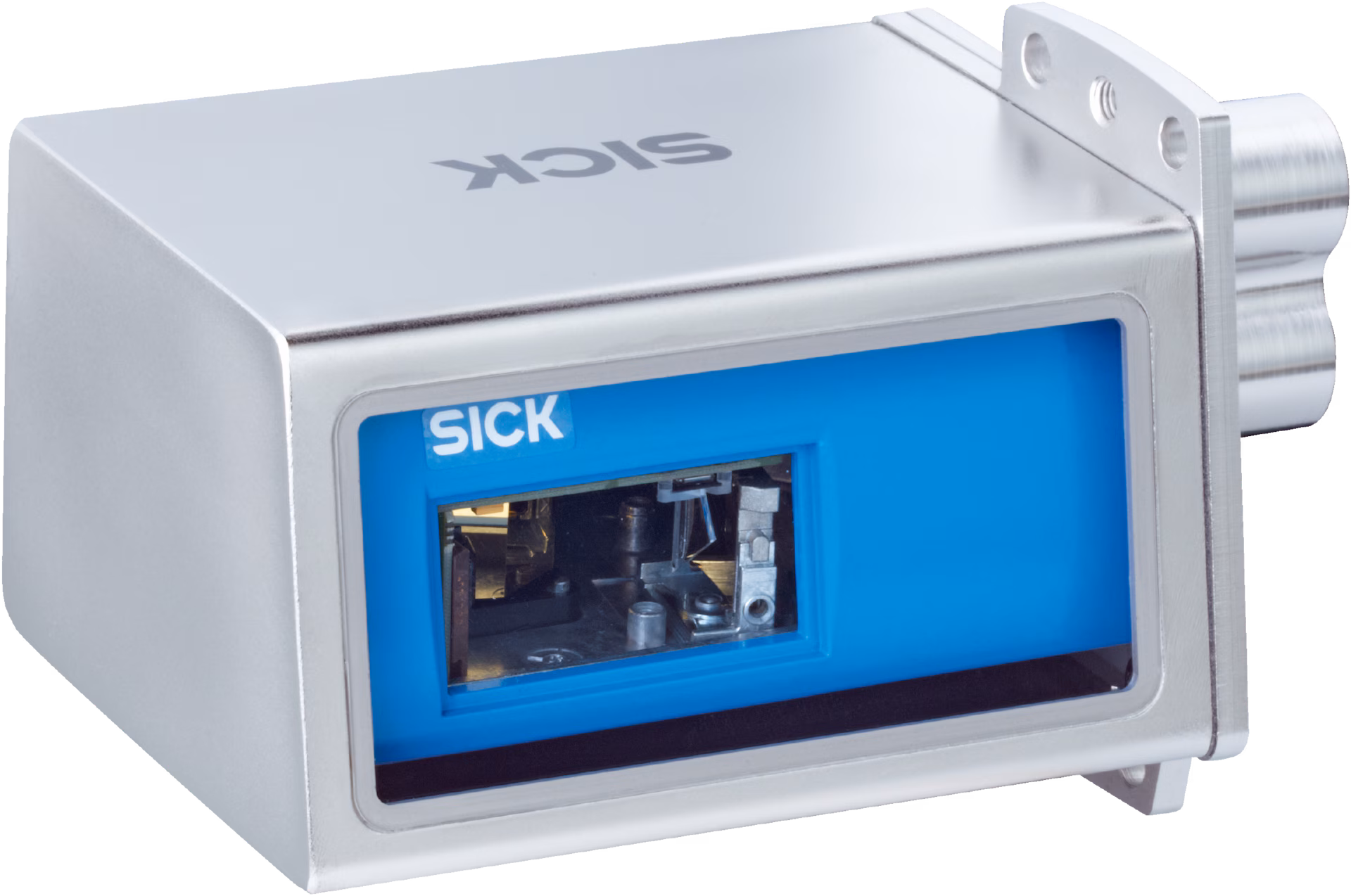

CLV632-1831S01
Key Features
- 1IP69K rated for harsh environments, ensuring durability and reliability.
- 2Supports Ethernet, PROFINET, EtherNet/IP™, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP for seamless integration.
- 3Utilizes a raster scanner with a fixed focus for precise 1D code reading.
- 4Operates within 0°C to +40°C ambient temperature and 90% non-condensing relative humidity.
- 5Designed with an MTBF of 100,000 hours and MTTF of 40,000 hours for laser diode.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Version | Short Range | Connection type | Ethernet |
| Reading field | Front | Sensor type | Raster scanner |
| Optical focus | Fixed focus | Light source | Light spot, laser, Visible, Red, 655 nm |
| Light spot | Circular | Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) |
| Aperture angle | ≤ 50° | Reading distance | 63 mm ... 270 mm |
| Scanning frequency | 400 Hz ... 1,200 Hz | Code resolution | 0.2 mm ... 0.5 mm |
| Raster height, number of lines, at distance | 15 mm, 8, 200 mm | Connection type | 2 x M12 cylindrical connectors (1 x 17-pin male connector, 4-pin female connector) |
| Supply voltage | 18 V DC ... 30 V DC | Power consumption | 5 W |
| Housing material | Stainless steel | Housing color | Stainless steel (unpainted) |
| Window material | Plastic | Enclosure rating | IP69K (DIN 40 050, part 9) |
| Protection class | III (EN 61140) | Weight | 890 g, without connecting cable |
| Dimensions (L x W x H) | 85 mm x 154 mm x 84 mm | MTBF | 100,000 h |
| MTTF | 40,000 h (Laser diode) | Readable code structures | 1D codes |
| Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey | Code printing process | Label (printed codes) |
| Print ratio | 2:1 ... 3:1 | No. of codes per scan | 1 ... 20 (Standard decoder)#!#1 ... 6 (SMART decoder) |
| No. of codes per reading interval | 1 ... 50 (auto-discriminating) | No. of characters per reading interval | 5,000#!#500 (for multiplexer function in CAN operation) |
| No. of multiple readings | 1 ... 99 | Ethernet_Function | Data interface (read result output), Service interface |
| Ethernet_Data transmission rate | 10/100 MBit/s | PROFINET_Function | PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2) |
| PROFINET_Data transmission rate | 10/100 MBit/s | EtherNet/IP™_Data transmission rate | 10/100 MBit/s |
| EtherCAT_Type of fieldbus integration | Optional over external fieldbus module CDF600 | Serial_Function | Data interface (read result output), Service interface |
| Serial_Data transmission rate | 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232) | CAN_Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
| CAN_Data transmission rate | 20 kbit/s ... 1 Mbit/s | CANopen_Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
| CANopen_Data transmission rate | 20 kbit/s ... 1 Mbit/s | PROFIBUS DP_Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Digital inputs | 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 in CDB650) | Digital outputs | 4 (“Result 1”, “Result 2”, 2 via optional CMC600 parameter memory in CDB650) |
| Reading pulse | Digital inputs, serial interface, auto pulse, CAN | Configuration software | SOPAS ET |
Specifications may be subject to change without notice
