Product Model

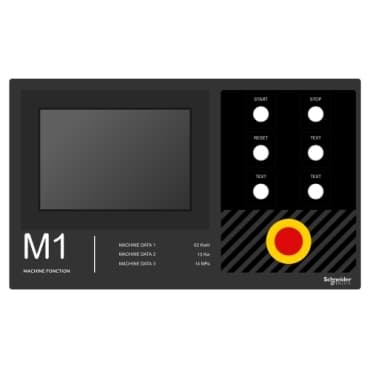

ZBYLEG503001
Key Features
- 1Quick and easy assembly and disassembly.
- 2Robustness to withstand harsh environments.
- 3Various types of connections: screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
- 4Packaging made with recycled cardboard as part of Schneider Electric's sustainability efforts.
- 5Designed to support Schneider Electric's "Use Better, Use Longer, Use Again" campaign for extended product lifetimes and recyclability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product or Component Type | Legend panel | accessory / separate part category | Marking accessories |
| Material | Plastic | Device Composition | Marked panel |
| Accessory / separate part destination | Ø 16 mm control and signalling units<br />Ø 22 mm control and signalling units<br />Ø 30 mm control and signalling units<br />For standard head | Range Compatibility | Harmony XB4<br />Harmony XB5<br />Harmony XB6<br />Harmony 9001K |
| Legend holder size | 500 x 300 | Net Weight | 0.110 lb(US) (0.050 kg) |
| Standards | ISO 21702<br />ISO 22196:2011 |
Specifications may be subject to change without notice
