Product Model
ZBRA2
Key Features

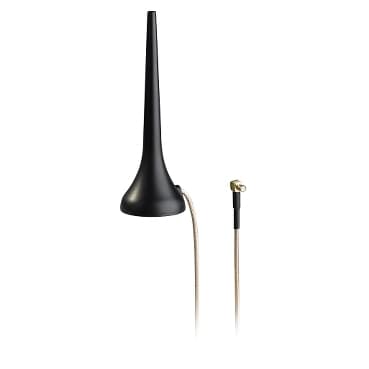

- 1Improve wireless connectivity with the ZBRA2 external passive antenna.
- 2Supports 83 to 100MHz and 2400 to 2483MHz frequency range.
- 3Optimized for vertical polarization to enhance signal strength.
- 4Energy-efficient design with no power consumption required.
- 5Suitable for automation, industrial, RF communications, and wireless applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5R | Product or Component Type | Wireless and batteryless range |
| Device short name | ZBRA | Product destination | Wireless access point |
| Colour of base of enclosure | Black RAL 9011) | Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Kit composition | Antenna with cable 2 m | input impedance | 50 Ohm |
| Connector Type | MCX female | Antenna gain | 3 dBi 83…100 Hz |
| Maximum sensing distance | 328.08 ft (100 m) access point in free field | Net Weight | 0.09 lb(US) (0.04 kg) |
| Relative humidity | 90 % -4…131 °F (-20…55 °C), without condensation ETSI EN 300 440-1 | Electrical shock protection class | Class II IEC 61140 |
Specifications may be subject to change without notice
