Product Model

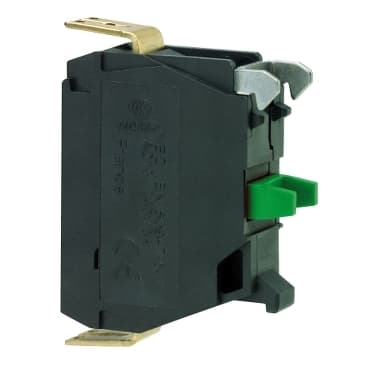

ZBE1016P3
Key Features
- 1High-Performance Contact: 10 A at 600 VAC rating ensures reliable operation.
- 2Compact Design: 22 mm size fits perfectly in control panels.
- 3Durable Construction: Gold flashed contacts for long-lasting performance.
- 4Easy Mounting: Screw terminal and push-button collar for simple installation.
- 5Harsh Environment Ready: Operates between -40 to 70°C, suitable for demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5<br />Harmony XB4 | Product or Component Type | Contact block |
| Device short name | ZBE | Sale per indivisible quantity | 5 |
| IP degree of protection | IP5X | Contact operation | Slow-break |
| Contact block type | Single | Contacts usage | Low power switching contacts |
| Connections - terminals | Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm | Net Weight | 0.026 lb(US) (0.012 kg) |
| Contacts type and composition | 1 NO | Positive opening | Without |
| Operating travel | 0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2.3 N NO changing electrical state |
| Mechanical durability | 10000000 cycles | Contacts material | Gold flashed (Ag/Ni/Au) contacts |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 | Mounting of block | Front mounting |
| Electrical composition code | C9 3)<br />M5 2)<br />M9 2) | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Standards | JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />UL 508<br />IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | BV<br />UL<br />CSA<br />DNV<br />LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
