Product Model

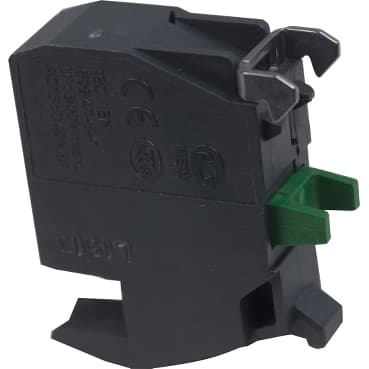

ZBE1014
Key Features
- 1Easy installation with plug-in terminals.
- 2High durability with 1 million cycle endurance.
- 3Robust IP20 protection for safe operation.
- 4Compatible with Harmony XB4 and XB5 control units.
- 5Silver alloy contacts for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4<br />Harmony XB5 | Product or Component Type | Contact block |
| Device short name | ZBE | Sale per indivisible quantity | 5 |
| IP degree of protection | IP20 IEC 60529 | Contact operation | Slow-break |
| Contact block type | Single | Contacts usage | Standard contacts |
| Connections - terminals | Plug-in connector | Net Weight | 0.024 lb(US) (0.011 kg) |
| Contacts type and composition | 1 NO | Positive opening | Without |
| Operating travel | 0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2.3 N NO changing electrical state |
| Mechanical durability | 10000000 cycles | Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 4 A cartridge fuse gG IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A300 IEC 60947-5-1<br />6 A 120 V, AC-15, A300 IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Mounting of block | Front mounting | Electrical composition code | C11 3)<br />C14 2)<br />M10 2) |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Standards | JIS C8201-5-1<br />UL 508<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | BV<br />UL<br />CSA<br />DNV<br />LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
