Product Model

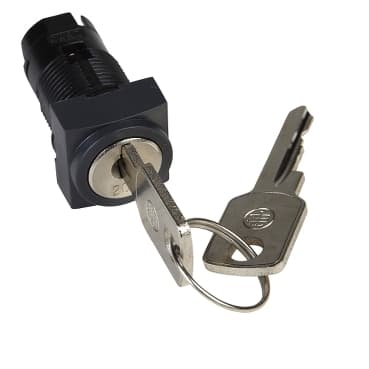

ZB6CGA1
Key Features
- 12-Position Modular Standard Stay Put Design: Easily switch between positions with a secure, stay-put mechanism.
- 2IP65 Rating: Durable and resistant to dust and water, ensuring reliable performance in various environments.
- 3Compliance with International Standards: Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, and other global safety standards.
- 4High-Quality Plastic Construction: Built with robust plastic material for long-lasting durability.
- 5Versatile Application: Ideal for control and signaling applications in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Head for key selector switch |
| Device short name | ZB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Square | Type of operator | stay put |
| Operator profile | Black key switch | Operator position information | 2 positions |
| Type of Keylock | Dom 311 | Key withdrawal position | Right-hand |
| CAD overall width | 0.7 in (18 mm) | CAD overall height | 0.7 in (18 mm) |
| CAD overall depth | 2.2 in (55 mm) | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />JIS C 852<br />JIS C8201-1 |
| Product Certifications | GOST<br />CSA<br />CCC<br />UL | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
