Product Model

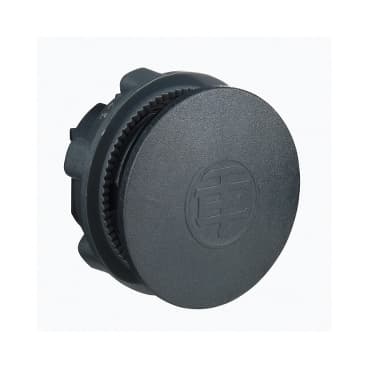

ZB5SZ3
Key Features
- 1Industrial-Grade Quality: Engineered for reliability and durability in industrial settings.
- 2IP65 Enclosure Protection: Ensures robust protection against environmental factors.
- 3Flush Actuator Profile: Provides a smooth and flush operation.
- 4Compatibility with Harmony Series: Designed to fit with Harmony XB4/XB5/XB7 Series 22 mm Dia pushbuttons.
- 5Aesthetically Pleasing Black Finish: Features a strong, sturdy plastic material with a black finish.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5<br />Harmony XB4 | accessory / separate part type | Blanking plug |
| accessory / separate part category | Installation accessories | Product or Component Type | Blanking plug |
| Accessory / separate part destination | Ø 22 mm cut-outs for circular heads | cap/operator or lens colour | Dark grey |
| Material | Plastic | Bezel material | Dark grey plastic |
| Head type | Standard | Colour | Dark grey |
| Device Composition | Nut<br />Blanking plug | Sale per indivisible quantity | 10 |
| Net Weight | 0.020 lb(US) (0.009 kg) | Shape of signaling unit head | Round |
| Operator profile | Flush | Station name | XALD 2...5 cut-outs<br />XALK 2...5 cut-outs |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />UL 508<br />JIS C8201-1 |
Specifications may be subject to change without notice
