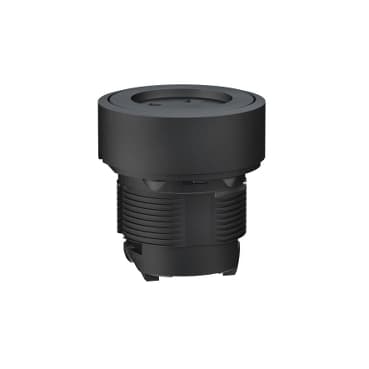

Product Model
ZB5RZA0
Key Features
- 1Wireless and batteryless operation for reliable performance.
- 2Spring return push button design for easy operation.
- 3Compatible with Harmony XB5R systems for seamless integration.
- 4Made from durable dark grey plastic with a round shape.
- 5Environmentally friendly, compliant with EU RoHS and China RoHS regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5R | Product or Component Type | Wireless and batteryless transmitter |
| Device short name | XB5R | Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Without cap flush | Station name | XALD 1...5 cut-outs |
| Electrical composition code | PW1 | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Specifications may be subject to change without notice
