Product Model

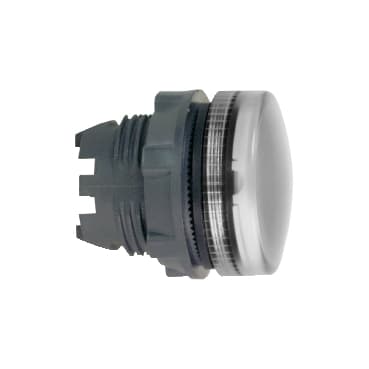

ZB5AV01S
Key Features
- 1Compatible with BA9s bulbs for reliable operation.
- 2Features a grooved lens for enhanced visibility.
- 3Offers IP66 protection against dust and water.
- 4Designed for high ambient lighting environments.
- 5Made from durable dark grey plastic with a white operator.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for pilot light |
| Product Compatibility | BA 9s | Device short name | ZB5 |
| Bezel material | Dark grey plastic | Mounting diameter | 0.9 in (22 mm) |
| Head type | Standard | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | cap/operator or lens colour | White |
| Operator additional information | With grooved lens | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.2 in (31 mm) |
| Net Weight | 0.037 lb(US) (0.017 kg) | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
| Electrical composition code | P3 front mounting BA 9s<br />P4 front mounting BA 9s and transformer<br />PF2 front mounting BA 9s | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK05 conforming to IEC 50102 |
| Environmental characteristic | High ambient lighting environment | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
