Product Model

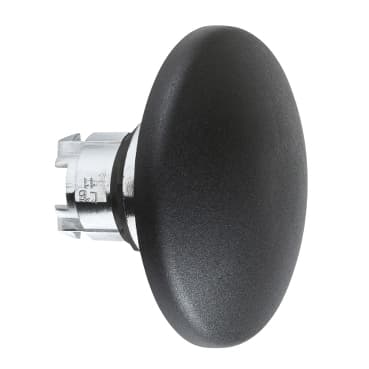

ZB4BR216
Key Features
- 1High-Quality Material: Made from chromium-plated metal for durability and resistance.
- 2Spring Return Mechanism: Ensures quick and easy operation with a spring return operator.
- 3Hemispherical Shape: Provides a robust and secure fit in various mounting configurations.
- 4Environmental Compliance: Meets Green Premium standards, ensuring compliance with latest environmental regulations.
- 5Long Cycle Life: Designed to withstand up to 5 million cycles, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Head type | Standard | Shape of signaling unit head | Hemispherical |
| Type of operator | spring return | Operator profile | Black mushroom Ø 60 mm, unmarked |
| cap/operator or lens colour | Black | CAD overall width | 2.4 in (60 mm) |
| CAD overall height | 2.4 in (60 mm) | CAD overall depth | 1.8 in (45 mm) |
| Mechanical durability | 5000000 cycles | Electrical composition code | C11 3 single front mounting<br />C15 1 single front mounting<br />C3 6 single front mounting<br />C4 6 single and double front mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />JIS C8201-1 | Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
