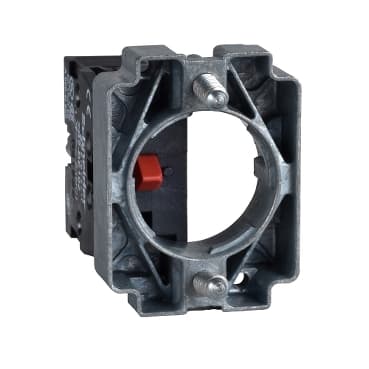

Product Model
ZB2BZ105
Key Features
- 1Reliable 22mm Push Button Switch: Essential for industrial control systems with a durable design.
- 2Metal Screw Clamp Terminals: Secure connections for reliable operation.
- 31 NO + 1 NC Contacts: Provides both normally open and normally closed contacts for versatile applications.
- 4Authentic Schneider Electric Product: Trustworthy and high-quality component from a renowned brand.
- 5Ideal for Control Panels & Machinery: Suitable for various industrial applications requiring a reliable push button switch.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Component name | ZB2 | Body type | Body for control button |
| Mounting diameter | 0.9 in (22 mm) | Contacts type and composition | 1 NO + 1 NC |
| Connections - Terminals | Screw clamps terminals | Bezel material | Chromium plated metal |
| Terminals description ISO n°1 | (13-14)NO<br />(11-12)NC | Light block colour | None |
| Light block supply | Without supply | Light source | Without |
Specifications may be subject to change without notice
