Product Model

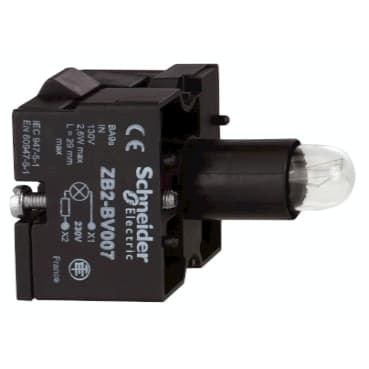

ZB2BV007
Key Features
- 1Incandescent Bulb with Multi-Button Control Station: Ideal for 22mm push buttons with front mounting.
- 2Polypropylene Enclosure: Durable and resistant to environmental factors.
- 3Direct Through Resistor Supply: Simplified installation with direct voltage supply.
- 4Contractual Warranty: 18 months of warranty for peace of mind.
- 5Environmentally Friendly: Compliant with EU RoHS and China RoHS regulations, mercury-free and toxic heavy metal-free.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Bulb type | Incandescent | Control station category | Multi-button |
| Enclosure Material | Polypropylene | Light source | Bulb included |
| Mounting of block | Front mounted | Net Weight | 0.04 lb(US) (0.02 kg) |
| [Ue] rated operational voltage | 30 V | Supply | Direct through resistor |
| [Us] rated supply voltage | 230 V |
Specifications may be subject to change without notice
