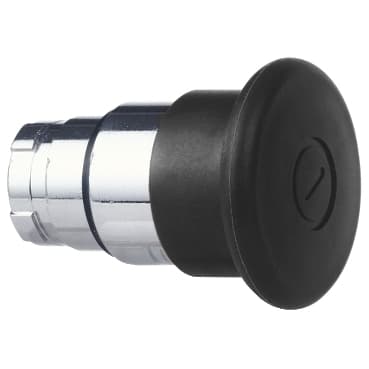

Product Model
ZB2BT2
Key Features
- 1High Mechanical Life: Designed to withstand up to 3 million operations.
- 2Vibration and Shock Resistance: Conforms to IEC 60068-2-6 and IEC 60068-2-27 standards.
- 3Compliance with International Standards: Meets IEC, UL, and NF C standards for safety and performance.
- 4Wide Range of Applications: Suitable for various industrial applications including control and signaling units.
- 5Easy Installation: Modular design facilitates quick and simple installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product or Component Type | Head | Device short name | ZB2 |
| Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Product destination | Emergency stop push-button |
| Shape of signaling unit head | Round | Type of operator | push-pull |
| Height | 1.6 in (40 mm) | Width | 1.6 in (40 mm) |
| Depth | 2.2 in (56 mm) |
Specifications may be subject to change without notice
