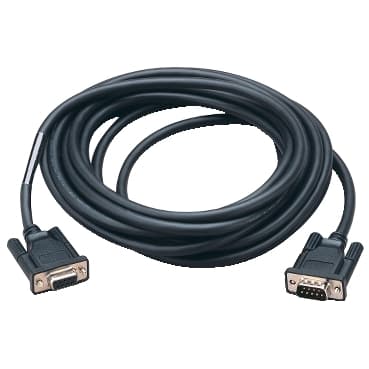

Product Model
XBTZG9772
Key Features
- 1Direct Connection Cable: Connects Magelis terminals directly to Mitsubishi Melsec PLCs.
- 25m Length: Ideal for various industrial settings with a 5-meter cable length.
- 32 Male SUB-D9 Connectors: Ensures secure and reliable electrical connections.
- 4Q Link (SIO) Protocol Compatibility: Supports Q Link communication protocol for seamless integration.
- 5Green Premium Product: Compliant with sustainability standards and environmentally friendly.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XBT | accessory / separate part category | Connection accessories |
| accessory / separate part type | Connecting cable | Product or Component Type | Connecting cable |
| Accessory / separate part designation | Direct connection cable | Accessory / separate part destination | Direct connection of XBT terminal to Mitsubishi Melsec PLC |
| Product Compatibility | XBTGK....<br />XBTGTW...<br />XBTGT6...<br />XBTGT4...<br />XBTGT7340<br />XBTOT...<br />XBTGT2...<br />XBTGT5... | Range Compatibility | Harmony HMI GTO<br />Mitsubishi Q Link |
| Cable length | 16.4 ft (5 m) | Electrical connection | 2 male connectors SUB-D 9 |
| communication port protocol | Q Link (SIO) | Physical interface | RS232C |
Specifications may be subject to change without notice
