Product Model
XBTZ9982
Key Features
- 1High Visibility Display: The XBTZ9982 features a high visibility display with large-size characters and 3-color backlighting (green, red, orange) for clear diagnostics and control.
- 2Modbus Compatibility: Designed for Modbus protocol, this serial link ensures seamless connectivity with various HMI and PLC systems, including Altistart 48 and Modicon M340.
- 3Ergonomic Design: With a compact and ergonomic design, the XBTZ9982 is easy to integrate and assemble, making it perfect for simple and compact machine builders.
- 4Customizable Keys: The product offers customizable and configurable keys using sets of labels, enhancing user interface flexibility and ease of use.
- 5Wide Language Support: Supporting multiple languages such as ASCII, Cyrillic, Greek, Japanese, and Chinese, the XBTZ9982 caters to international applications with 128 customizable characters.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XBT | accessory / separate part category | Connection accessories |

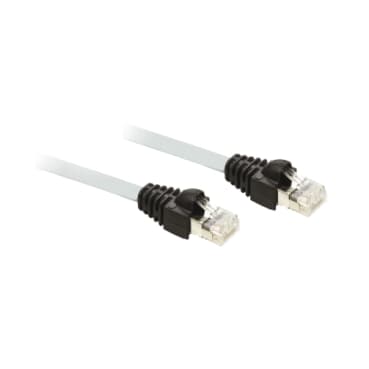

| accessory / separate part type | Connecting cable | Accessory / separate part designation | Modbus serial link |
| Accessory / separate part destination | XBT terminal<br />Small touch screen panel | Cable length | 32.8 ft (10 m) |
| Product Compatibility | XBTN400<br />XBTGT2...<br />XBTN200<br />XBTR400<br />XBTRT511<br />XBTGK....<br />XBTRT500 | Range Compatibility | Preventa XPSMC<br />Altivar 31<br />TeSys U<br />Lexium 05<br />Harmony HMI GTO<br />Altivar 71<br />Modicon M340<br />Harmony STO & STU<br />Altivar 61<br />TeSys T<br />Altistart 48 |
| Electrical connection | 2 male connectors RJ45 | communication port protocol | Modbus |
| Physical interface | RS485 |
Specifications may be subject to change without notice
