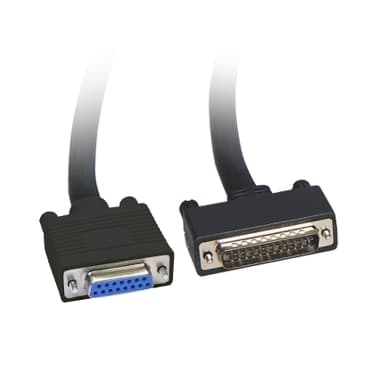

Product Model
XBTZ908
Key Features
- 1High-Quality Connectivity: Connects devices via Uni-Telway/Modbus serial link.
- 2Versatile Compatibility: Compatible with XBTGT5, XBTN410, CCX17, and more Magelis XBT accessories.
- 3Durable Design: Equipped with one 15-way female SUB-D and one 25-way SUB-D connector.
- 4Environmentally Friendly: Compliant with REACh and RoHS regulations, mercury-free, and recyclable.
- 5Reliable Communication: Supports RS485 physical interface for reliable data transfer.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XBT | accessory / separate part category | Connection accessories |
| accessory / separate part type | Connecting cable | Accessory / separate part designation | Uni-Telway/Modbus serial link |
| Accessory / separate part destination | XBT terminal<br />Bus and network | Cable length | 5.9 ft (1.8 m) |
| Product Compatibility | XBTGT5...<br />XBTN410<br />CCX17<br />XBTGT2..0<br />TSXSCA64<br />TSXSCA62<br />XBTGT7340<br />XBTGK....<br />XBTGT4...<br />XBTOT...<br />XBTR410<br />XBTN401<br />XBTR411<br />XBTGT6... | Electrical connection | 1 connector SUB-D 25<br />1 female connector SUB-D 15 |
| communication port protocol | Uni-Telway<br />Modbus | Physical interface | RS485 |
| Net Weight | 0.53 lb(US) (0.24 kg) |
Specifications may be subject to change without notice
