Product Model

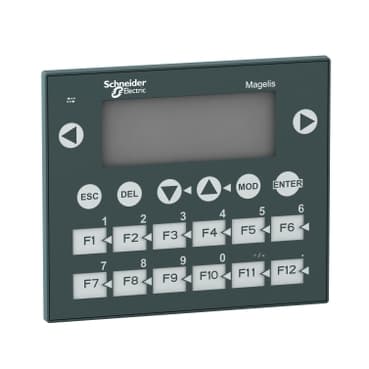

XBTR400
Key Features
- 1Compact design with 122 x 32 pixels matrix backlit LCD display.
- 2Compatible with Twido, Modicon TSX Micro, Modicon M340, and Modicon Premium PLCs.
- 3Equipped with 20 keys, including 8 fixed and 12 customizable keys.
- 4Supports Vijeo Designer Lite configuration software for customization.
- 5Offers 2-year warranty and is IP20/IP65 and NEMA 4X rated for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Magelis XBTR | Display Resolution | 122 x 32 pixels |
| Software Type | Configuration software | Software Designation | Vijeo Designer Lite |
| Operating System | Windows | Display Type | Matrix backlit LCD |
| Character font | Greek<br />Cyrillic<br />Chinese (simplified Chinese)<br />Katakana<br />Latin | Number of key | 20 |
| Number of fixed keys | 8 | Number of customisable keys | 12 |
| Number of pages | 256 alarm pages<br />200 application pages | Memory type | Flash |
| Memory capacity | 512 KB | Integrated connection type | Serial link female RJ45, asynchronous RS232C/RS485)point-to-point |
| Realtime clock | Access to the PLC real-time clock | Range Compatibility | Twido<br />Modicon Premium<br />Modicon M340<br />Modicon TSX Micro |
| Product mounting | Flush mounting | Fixing mode | By 4 spring clips |
| Display material | Polyester | Front material | PPT |
| Keypad material | Polyester | marking | CE |
| Height | 4.6 in (118 mm) | Width | 5.4 in (137 mm) |
| Depth | 3.07 in (78 mm) | cut-out dimensions | 119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm |
| Net Weight | 1.21 lb(US) (0.55 kg) | Product or Component Type | Small panel with keypad |
| Display colour | Green | display capacity | 4 lines of 20 characters maximum<br />1 line of 5 characters minimum |
| [Us] rated supply voltage | 5 V DC | Supply | From PLC (terminal port) |
| Downloadable protocols | Modbus<br />Uni-TE | Standards | UL 508<br />CSA C22.2 No 14<br />IEC 60068-2-6<br />IEC 60068-2-27<br />IEC 61131-2 |
| Product Certifications | UL 1604<br />ATEX zone 2/22<br />UL Class 1 Division 2<br />CSA Class 1 Division 2 | Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 0…85 % without condensation |
| IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel outdoor use) |
| Shock resistance | 15 gn 11 ms | Vibration resistance | +/- 3.5 mm 2…8.45 Hz)<br />1 gn 8.45…150 Hz) |
Specifications may be subject to change without notice
