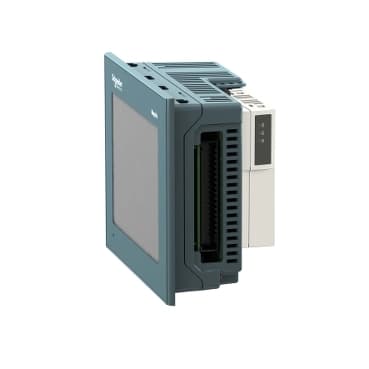

XBTGC2230T

Manufacturer

schneider

Key Features

1The XBTGC2230T boasts a 5.7" backlit STN LCD display with 4096 colors, ensuring clear and vibrant visuals.
2Equipped with 16 inputs and 16 outputs, this controller panel offers extensive connectivity options for seamless integration into industrial automation systems.
3Constructed with a durable PPT enclosure, the XBTGC2230T is designed to withstand harsh industrial environments.
4With a power consumption of 27 W, this controller panel is energy-efficient and suitable for long-term operation.
5Compatible with various protocols including Modbus and Modbus TCP/IP, making it versatile for different industrial applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Magelis XBT GC, GT/GK with control	Product or Component Type	Small touch HMI controller
Display size	5.7 inch	Display Type	Backlit colour STN LCD
Display colour	4096 colours	Pixel resolution	320 x 240 pixels QVGA
Touch panel	Analogue	[Us] rated supply voltage	24 V DC
Supply	External source	Supply voltage limits	19.2…28.8 V
Enclosure Material	PPT	Backlight lifespan	50000 hours
Brightness	8 levels via touch panel	Contrast	8 levels via touch panel
Character font	Chinese (simplified Chinese)<br />Taiwanese (traditional Chinese)<br />ASCII<br />Japanese (ANK, Kanji)<br />Korean	Inrush current	30 A
Power consumption in W	27 W	Local signalling	1 LED green normal operation
Number of pages	Limited by internal memory capacity	Software Designation	SoMachine
Operating System	Magelis	Processor name	CPU RISC
Processor frequency	131 MHz	Memory description	Application memory 16 MB<br />Back up of data 512 KB
Integrated connection type	1 USB port (V1.1) USB type A<br />Power supply removable screw terminal block<br />COM1 serial link male SUB-D 9 <= 115.2 kbits/s RS232C/RS422/RS485<br />1 Ethernet TCP/IP RJ45	I/O expansion capacity	3 M238 modules
Realtime clock	Built-in	Downloadable protocols	Modbus<br />Uni-TE<br />Modbus TCP/IP<br />Third party protocols
Fixing mode	By 4 screw clips 1.6...5 mm thick panel	marking	CE
Discrete input number	16	Discrete input voltage	24 V
Discrete input voltage type	DC	Number of common point	1I/2O
input voltage limits	20.4...28.8 V	Discrete input logic	Source
Discrete input current	5 mA other I0.i<br />6.5 mA I0.0, I0.2, I0.4, I0.6	Input impedance	3.7 kOhm I0.0, I0.2, I0.4, I0.6<br />4.7 kOhm other I0.i
Filter time	0.5...20 ms at state 0<br />0.5...20 ms at state 1	Isolation between channels	None
Discrete output number	16	Discrete output type	Transistor
Discrete output voltage	24 V	Output voltage limits	20.4...28.8 V
Discrete output logic	Source	Discrete output current	0.2 A
Maximum current per output common	1.6 A	Response time	5 µs at state 0 Q0.0...Q0.3<br />5 µs at state 1 Q0.0...Q0.3<br />500 µs at state 0 other Q0.i<br />500 µs at state 1 other Q0.i
[Ures] residual voltage	0.5 V at state 1	Maximum leakage current	0.1 mA
Short-circuit protection	2.5 A fuse	Height	5.3 in (135 mm)
Width	6.6 in (167.4 mm)	Depth	3.06 in (77.6 mm)
Net Weight	2.2 lb(US) (1 kg)	Immunity to microbreaks	3 ms
Standards	EN 61131-2<br />UL 1604<br />FCC Class A<br />CSA C22.2 No 14<br />IEC 61000-6-2<br />UL 508	Product Certifications	cULus<br />CSA<br />C-tick<br />UL class 1 Div2 T4A ou T5
Ambient Air Temperature for Operation	32…122 °F (0…50 °C)	Ambient Air Temperature for Storage	-4…140 °F (-20…60 °C)
Relative humidity	10…90 % without condensation	Operating altitude	<= 6561.68 ft (2000 m)
IP degree of protection	IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)	NEMA degree of protection	NEMA 4X front panel
Shock resistance	147 m/s²IEC 60068-2-27	Vibration resistance	+/- 3.5 mm 5…9 Hz) IEC 60068-2-6<br />1 gn 9…150 Hz) IEC 60068-2-6
Resistance to electromagnetic fields	9.1 V/m (10 V/m) IEC 61000-4-3

Specifications may be subject to change without notice
