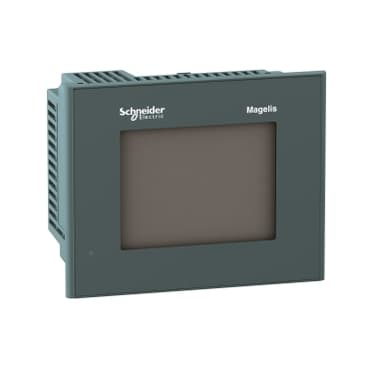

Product Model
XBTGC1100T
Key Features
- 1Features a 3.8" STN LCD with amber or red backlighting and 8 levels of grey, providing clear visibility in various environments.
- 2Equipped with a touch panel for easy user interaction and control in automation systems.
- 3Includes 12 digital inputs and 6 digital outputs, all operating at 24V DC, ensuring reliable data transmission.
- 4Backlight lifespan of up to 50,000 hours with amber and 10,000 hours with red, reducing maintenance needs.
- 5Measures 104 mm in height, 130 mm in width, and 76.5 mm in depth, making it suitable for various installation scenarios.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Magelis XBT GC, GT/GK with control | Product or Component Type | Small touch HMI controller |
| Display size | 3.8 inch | Display Type | Backlit monochrome STN LCD |
| Display colour | Amber or red<br />8 levels of grey | Pixel resolution | 320 x 240 pixels QVGA |
| Touch panel | Analogue | [Us] rated supply voltage | 24 V DC |
| Supply | External source | Supply voltage limits | 19.2…28.8 V |
| Enclosure Material | PPT | Backlight lifespan | 10000 hours red<br />50000 hours amber |
| Brightness | 8 levels | Contrast | 8 levels via touch panel |
| Character font | Japanese (ANK, Kanji)<br />Korean<br />Chinese (simplified Chinese)<br />ASCII<br />Taiwanese (traditional Chinese) | Inrush current | 30 A |
| Power consumption in W | 18 W | Local signalling | 1 LED green normal operation |
| Number of pages | Limited by internal memory capacity | Software Designation | SoMachine |
| Operating System | Magelis | Processor name | CPU RISC |
| Processor frequency | 131 MHz | Memory description | Application memory 16 MB<br />Back up of data 512 KB |
| Integrated connection type | 1 USB port (V1.1) USB type A<br />Power supply removable screw terminal block | I/O expansion capacity | 2 M238 modules |
| Realtime clock | Built-in | Fixing mode | By 4 screw clips 1.6...5 mm thick panel |
| marking | CE | Discrete input number | 12 |
| Discrete input voltage | 24 V | Discrete input voltage type | DC |
| Number of common point | 1I/1O | input voltage limits | 20.4...28.8 V |
| Discrete input logic | Source | Discrete input current | 5 mA other I0.i<br />6.5 mA I0.0, I0.2, I0.4, I0.6 |
| Input impedance | 3.7 kOhm I0.0, I0.2, I0.4, I0.6<br />4.7 kOhm other I0.i | Filter time | 0.5...20 ms at state 0<br />0.5...20 ms at state 1 |
| Isolation between channels | None | Discrete output number | 6 |
| Discrete output type | Transistor | Discrete output voltage | 24 V |
| Output voltage limits | 20.4...28.8 V | Discrete output logic | Source |
| Discrete output current | 0.2 A | Maximum current per output common | 1.2 A |
| Response time | 5 µs at state 0 Q0.0...Q0.3<br />5 µs at state 1 Q0.0...Q0.3<br />500 µs at state 0 other Q0.i<br />500 µs at state 1 other Q0.i | [Ures] residual voltage | 0.5 V at state 1 |
| Maximum leakage current | 0.1 mA | Short-circuit protection | 2.5 A fuse |
| Height | 4.09 in (104 mm) | Width | 5.1 in (130 mm) |
| Depth | 3.01 in (76.5 mm) | Net Weight | 0.9 lb(US) (0.4 kg) |
| Immunity to microbreaks | 10 ms | Standards | EN 61131-2<br />UL 508<br />UL 1604<br />CSA C22.2 No 14<br />IEC 61000-6-2<br />FCC Class A |
| Product Certifications | cULus<br />UL class 1 Div2 T4A ou T5<br />CSA<br />C-tick | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % without condensation |
| Operating altitude | <= 6561.68 ft (2000 m) | IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) |
| NEMA degree of protection | NEMA 4X front panel | Shock resistance | 147 m/s²IEC 60068-2-27 |
| Vibration resistance | +/- 3.5 mm 5…9 Hz) IEC 60068-2-6<br />1 gn 9…150 Hz) IEC 60068-2-6 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
Specifications may be subject to change without notice
