Product Model

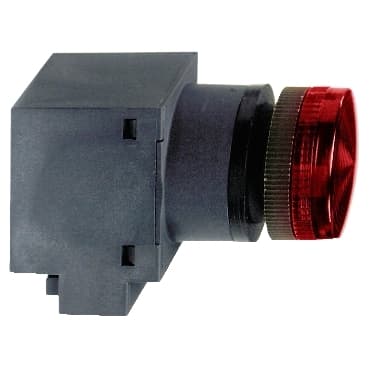

XB7EV84P
Key Features
- 1Durable plastic housing for long-lasting performance.
- 2NEMA 4/12/IP65/IP20 enclosure for robust environmental protection.
- 3Reliable A22 LED lamp with orange lens for clear visibility.
- 4Suitable for various industrial applications including machine manufacturers and energy distribution panels.
- 5Easy installation with screw clamp terminals for quick setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB7 | Product or Component Type | Pilot light |
| Device short name | XB7 | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 10 | Light source | Incandescent |
| Device presentation | Monolithic product | Height | 1.6 in (41 mm) |
| Width | 1.2 in (30 mm) | Depth | 2.5 in (64 mm) |
| Terminals description ISO n°1 | (X1-X2)PL | Net Weight | 0.04 lb(US) (0.02 kg) |
| Overvoltage category | Class II IEC 60536 | Device mounting | Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 EN/IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm)<br />>= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm) | Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) |
| Shape of signaling unit head | Round | cap/operator or lens colour | Red |
| Connections - terminals | Faston connectors 6.35 x 0.8 mm EN/IEC 60947-1<br />Forked type tag connectors 6.5 mm EN/IEC 60947-1<br />Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1 | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape of screw head | Cross JIS No 1<br />Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV EN/IEC 60947-1 | Signalling type | Steady |
| Bulb base | BA 9s | Light block supply | Via transformer |
| [Us] rated supply voltage | 230...240 V AC 50/60 Hz | Supply voltage limits | 195…264 V AC |
| Service life | 2000 h at rated voltage and 25 °C | Compatibility code | XB7 |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) | IP degree of protection | IP20 IEC 60529 rear face)<br />IP54 IEC 60529 front face) |
| NEMA degree of protection | NEMA 12 | Standards | CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />UL 508<br />JIS C8201-1 |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Electromagnetic compatibility | Disturbing field emission class B conforming to EN 55011 |
Specifications may be subject to change without notice
