Product Model

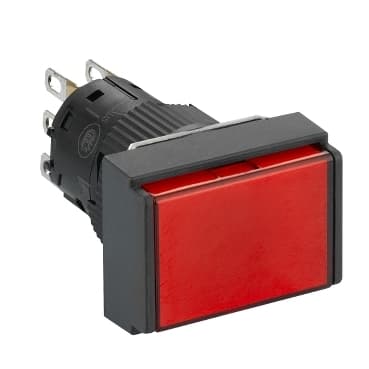

XB6EDW4J1P
Key Features
- 1Robust IP65 Protection: Ensures complete protection against solid particles and a good level of protection against water.
- 2Easy Installation: Simple to install with a clip-together component system, making it quick and efficient.
- 3Reliable Operation: Designed for operation in temperatures ranging from -13 to 122°F (-25 to 50°C) and storage up to 158°F (70°C).
- 4High-Brightness LED: Features super-bright, true-color LED light for clear indication of machine status.
- 5Versatile Applications: Suitable for various applications including control panels, surveillance rooms, alarms, and medical instrumentation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6E | Product or Component Type | Illuminated monolithic push-button |
| Device short name | XB6E | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 5 |
| Shape of signaling unit head | Rectangular | Type of operator | spring return |
| Operator profile | Red flush | Contacts type and composition | 1 C/O |
| Contact operation | Snap action | Connections - terminals | Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket |
| Contacts material | Gold-flashed silver | Light source | Integral LED |
| [Us] rated supply voltage | 12 V DC polarised | Net Weight | 0.013 lb(US) (0.006 kg) |
| Operating position | Any position | marking | CE |
| Mechanical durability | 1000000 cycles | Contact resistance | 50 mOhm 1/6 V |
| Short-circuit protection | 2 A cartridge fuse gG | [Ith] conventional free air thermal current | 3 A fast connector socket)<br />5 A |
| [Ie] rated operational current | 1.5 A 120 V, AC-12 IEC 60947-5-1<br />1 A 240 V, AC-12 IEC 60947-5-1<br />1 A 24 V, DC-12 IEC 60947-5-1<br />0.7 A 24 V, DC-13 IEC 60947-5-1<br />0.2 A 125 V, DC-12 IEC 60947-5-1<br />0.15 A 125 V, DC-13 IEC 60947-5-1 | Electrical durability | 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C |
| Signalling type | Steady | current consumption | 10 mA |
| Service life | 30000 h | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) | IP degree of protection | IP65 IEC 60529 |
| Standards | JIS C 4520<br />JIS C 852<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />IEC 60947-1 | Product Certifications | CCC<br />cURus |
| Vibration resistance | 1 mm 10…55 Hz)IEC 60068-2-6 | Shock resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
