Product Model

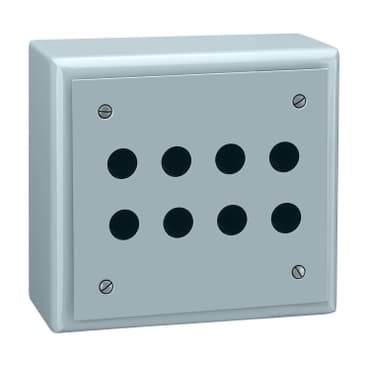

XB2SL42007
Key Features
- 1High-temperature rating for demanding environments.
- 2Compact design for easy installation in tight spaces.
- 3Advanced thermal management for extended lifespan.
- 4Robust construction with durable materials for heavy-duty use.
- 5Compliant with international safety standards for peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XAP | Product or Component Type | Empty control station |
| Device short name | XB2SL | Product destination | For Ø 22 mm control and signalling units |
| Product front plate size | 200 x 200 mm | Usable depth | 4.5 in (115 mm) |
| Number of cut-out | 8 cut-outs | Material | Sheet steel |
| Product mounting | Flush mounting | IP degree of protection | IP54 IEC 60529<br />IP547 NF C 20-010 |
| Number of vertical rows | 4 | Net Weight | 6.8 lb(US) (3.1 kg) |
| Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class I IEC 60536<br />Class I NF C 20-030 |
Specifications may be subject to change without notice
