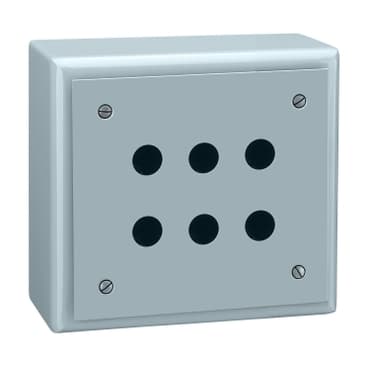

Product Model
XB2SL32009
Key Features
- 1Durable aluminum alloy construction for long-lasting performance.
- 26 openings in 3 columns for versatile electrical management.
- 3Ideal for various industrial and commercial applications.
- 4Easy installation and maintenance with a robust design.
- 5Enhances electrical safety with a reliable and secure setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XAP | Product or Component Type | Empty control station |
| Device short name | XB2SL | Product destination | For Ø 22 mm control and signalling units |
| Product front plate size | 150 x 150 mm | Usable depth | 3.07 in (78 mm) |
| Number of cut-out | 6 cut-outs | Colour of base of enclosure | Blue |
| Colour of cover | Blue | Material | Aluminium alloy |
| Cable entry | 2 holes with blanking plug for cable gland 0.5 in (12 mm) | Product mounting | Flush mounting |
| IP degree of protection | IP54 IEC 60529<br />IP547 NF C 20-010 | Number of vertical rows | 3 |
| Net Weight | 2.14 lb(US) (0.97 kg) | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class I IEC 60536<br />Class I NF C 20-030 |
Specifications may be subject to change without notice
