Product Model

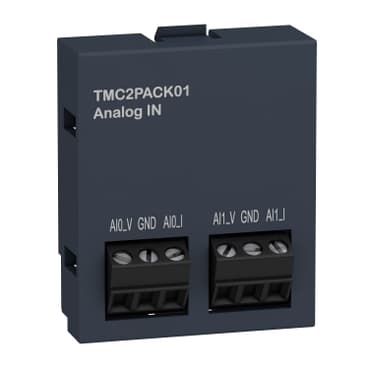

TMC2PACK01

Manufacturer

schneider

Key Features

1Environmentally Friendly Design: Constructed from materials free of toxic heavy metals, mercury, and PVC.
2Versatile Analog Inputs: Accepts 0-10Vdc or 0-20mA / 4-20mA signals with a 12-bit resolution.
3Easy Installation: Utilizes screw terminal blocks and supports plug-in mounting for quick setup.
4Wide Temperature Range: Operates in ambient air temperatures from +14 to +131°F (-10 to +55°C) and can be stored in temperatures from -13 to +158°F (-25 to +70°C).
5High-Resolution Signal Handling: Offers precise signal handling with a resolution of 12 bits for accurate data processing.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Modicon M221	Product or Component Type	Analogue input cartridge
Product Specific Application	Packaging	Product Compatibility	Modicon M221C
Analogue input number	2	Analogue input type	current 4...20 mA<br /> current 0...20 mA<br /> voltage 0...10 V
Analogue input resolution	12 bits	LSB value	2.44 mV 0...10 V voltage<br />4.88 µA 0...20 mA current<br />3.91 µA 4...20 mA current
Conversion time	20 ms	Sampling duration	10 ms
Absolute accuracy error	+/- 0.1 % of full scale at 77 °F (25 °C)<br />+/- 1 % of full scale	Temperature Drift	+/- 0.02 %FS/°C
Repeat accuracy	+/- 0.5 %FS	Non-linearity	+/- 0.01 %FS
Cross talk	<= 1 LSB	Type of Cable	Twisted shielded pairs cable
Electrical connection	3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs	Maximum cable distance between devices	Twisted shielded pairs cable <98.4 ft (30 m) input
Insulation	Non-insulated between analogue input and internal logic	Height	1.6 in (41 mm)
Depth	0.6 in (15 mm)	Width	1.4 in (35 mm)
Net Weight	0.033 lb(US) (0.015 kg)	Permissible continuous overload	13 V voltage<br />40 mA current
Input impedance	<= 250 Ohm current<br />>= 1 MOhm voltage	Immunity to microbreaks	10 ms
